Automatic Paper Meal Box Forming Machine

Product Description

Equipment Name: Automatic Paper Meal Box Forming Machine
1. Description:

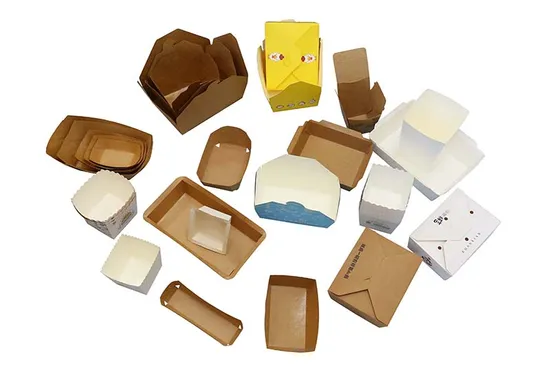

CH-10 Automatic Paper Lunch Box Forming Machine is used to produce coated one side or both sides of polyethylene (PE paper) single-cell paper lunch boxes. It can be manufactured for using in the storage, refrigeration a one-time single-cell paper lunch box.
Description: CH-10 Automatic Paper Lunch Box Forming Machine runs the whole procedure of auto paper feeding, heating (hot air, by hot air generator) and forming shape, auto transfer to the connection. This equipment has stable performance, automatic detection and alarm function.
2. Technical Specification:
CH-10 Paper Lunch Box Machine Technical Specification:
A. HS. Code: 8441309000
B. Paper Lunch Box Size: Regular size (mold exchangeable);
C. Raw Material: PE/PLA coated paper;
D. Suitable paper weight: 200-400 GSM;
E. Rated Productivity: 40--50 piece/minute;
F. Total Power: 5 KW;
G. Power Source: 220V 50Hz or other required;
H. Total Weight: 700 Kg;
I. Package Size (L x W x H): 1650 X 1150 X 2100 mm;
J. Working Air Source: Air Pressure: 0.8Mpa, Air Out-put: 1 m3/minute Need to buy An air compressor.
