Warehouse Economic Radio Shuttle Pallet Rack System Automation Racking System Pallet Runner Radio Shuttle System

Product Description

Warehouse Economic Radio Shuttle Pallet Rack system Automation Racking System Pallet Runner Radio Shuttle
Welfor pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easily to your specific needs.
Radio Shuttle Rack is a racking system with high density storage including racking and electrically powered pallet runners which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse.
Features
1.100% accessibility to individual pallets;
2. Easy picking lower levels;
3. Good storage density;
4. Easily installed and repositioned;
5. No special lift trucks required;
Warehouse Economic Radio Shuttle Pallet Rack system Automation Racking System Pallet Runner Radio Shuttle

Loading	With the radio controller order, the pallet runner transports the pallet into the tunnel of racking system from the home position, then return for the next pallet
Picking	With the radio controller order, pallet runner carries pallets out of deep tunnel to home position for forklift to pick
Transferring	The pallet runner can be transferred to other tunnels by forklift. The quantity of pallet runners depends on the depth of tunnels, quantity of goods, throughput, load and pick frequency, etc.

FILO: When the racking system has one passage way.
FIFO: Pallet runner have access to both ends of tunnels.

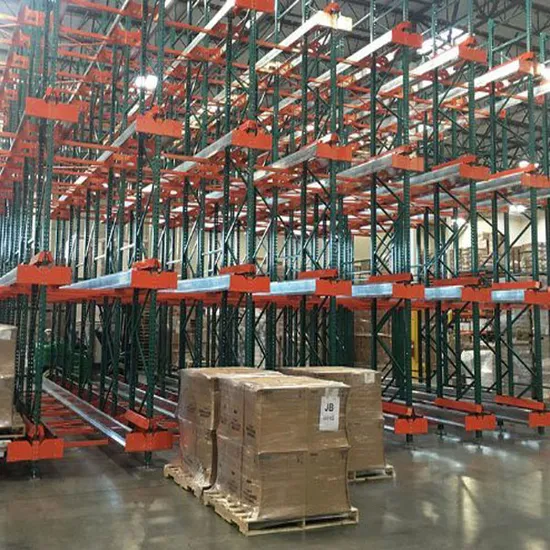

Radio Shuttle Rack concept:
Radio Shuttle shuttle Racking system consists of supporting rack, shuttle rails and a Radio shuttle cart (Also Called Pallet Runner or Pallet Mole). The Radio shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.
All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.
FAQ
1. Q: Are you a factory or trading company?
A: We are a manurfacory
2. Q: Where is your factory located? How can I visit there?
A:Our factory located in NANJING City Jiangsu Province, China ,You can fly to Shanghai airport directly. We will pick you up on Shangha international. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is the term of payment?
A: 1) T/T payment. 2) LC
4. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.
5. Q: Which port will be used as loading port?
A: Shanghai
6. Q: What is delivery times?
A: It depends on the order quantity and racking types
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier
costs to be borne by clients.

CE CERTIFICATE
Warranty: 2 years after you received.
Small issues: about the installation, knock down, fix in, package, storage items, even color or other issues, we will guarrantee for the whole life.
Installation: you can choose install teams in your local palce or ours.
Freight: shipping cost will offered by our forwarder for you reference.
Visitation: Warmly welcome to visit our factory in suburb and company in city centre, we will treat you with hot pot, or special local menu.
The most valued of our company is aimed to provide the high-end quality, best service, EXW price, and team work spirit for your old customers and new customers.
It's our honored to get your enquiry at any time. Any enquiry will be replied within 5 minutes during working time, within 15 minutes during weekends and holidays.

Sunny Wang-Sales Manager
