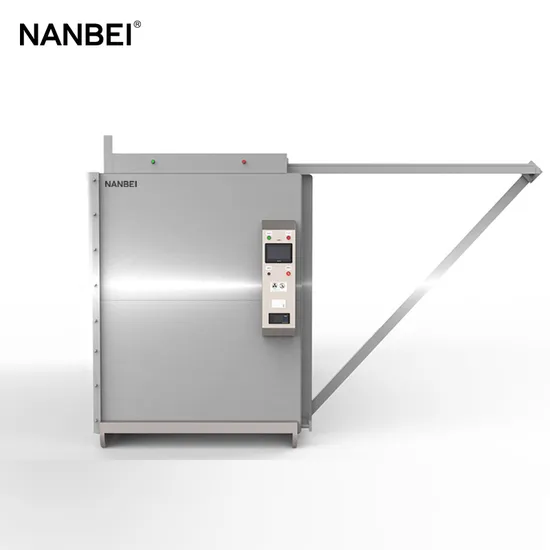

Nanbei Stainless Steel Class I Medical Sterilization Equipment Eto Gas Sterilizer Ethylene Oxide Sterilizer for Medical Supplies

Product Description

Medical Ethylene Oxide Sterilizer for products From China
Product Description The scope of application of epoxy ethane sterilizer:
1. Medical supplies: operation instrument, syringe, infusion, catheters, birth control equipment.
2. Medical devices: endoscope, cardiac pacemaker, artificial heart, medical telephone, dialyzer, aspirator.
3.Health supplies: lady napkins, disposable tableware etc..
4. Medicine: Chinese medicine and Western medicine, cosmetics.
5. Textiles and biological products: cotton fiber, leather clothing, blankets, brush etc..
6. Instruments: electronic instrument, optical instrument, telephone etc..
7. Other: money, tickets, records, files, correspondence, collection of historical relics, silk satin products, animal specimens.
The products using epoxy ethane mixed gas, flame retardant, anti explosion, safety (temperature, pressure, leakage and other abnormal automatic alarm system for sterilized articles), no corrosion, no pollution to the environment damage.

Product structure:
1.Sterilizing chamber using 304 stainless steel mirror,anticorrosion.
2. A3 steel cabinet,durable.
3. Equipped with a thermal barrier layer
4. Double protective doors,insulation,sealing and leak prevention.

Product Features Configuration:
1.Sterilization process automatic computer control,LCD display panel
2. Sterilizing effect of doubling the anti-leak vacuum pumping system
3. Sterilization efficiency of automatic humidification system
4. Sterile water cycle automatic heating system efficiency
5. Air and water vapor auto exhaust purification of ethylene oxide residue analytical sound processing system.
6. Efficiency and prevent environmental pollution discharge residue heating air purification system
7. Sterilization automatic printing system the whole process (optional)
8. Temperature,pressure,leakage and other abnormalities of the automatic alarm system
9. After the accident off the job site automatic recovery system

Product specification:
Working equipment external ambient temperature:5-60C
The equipment sterilization room temperature:20-60C arbitrarily set.
Temperature accuracy:±1C
Vacuum pressure:-7~-70Kpa, arbitrarily set.
Sterilization time regulation range:1-9h, arbitrarily set.
Sterilization humidity:60%-80%, arbitrarily set.
The number of rows of residues: arbitrarily set.
Resolution time:arbitrarily set.
Clean: arbitrarily set
Voltage: 220v/50Hz
Detailed Photos
Product Parameters

Model	Room size(mm)	External size(mm)	Volume(L)	Power(kw)
NBTY-30	392*290*320	630*440*770	30	1.1
NBTY-60	520*320*400	780*480*1020	60	1.1
NBTY-65	570*320*400	830*480*1020	65	1.2
NBTY-150	732*420*558	900*575*1110	150	1.4
NBTY-200	708*450*670	880*650*1370	200	1.9
NBTY240	510*300*1480	690*780*1690	240	1.9
NBTY-300	812*500*802	960*700*1500	300	2.1
NBTY-600	1030*630*930	1410*850*1700	600	2.6
NBTY-1000	1300*800*1000	1700*1020*2000	1000	3.1
