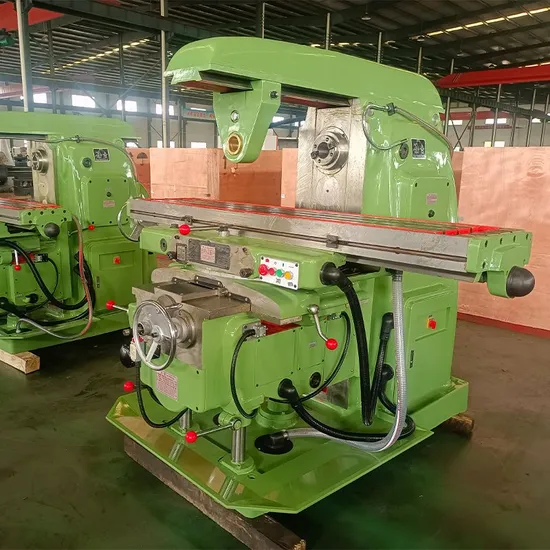

Head Spindle Swivel Table Heavy Duty Digital Readout Horizontal Milling Machine

Product Description

Product Description
X6140 Swivel Table Horizontal Milling Machine

The X6140 universal lifting table milling machine is a powerful metal cutting machine tool with strong rigidity, wide feed speed range, and can withstand heavy-load chips.
Product Parameters

Specifications	Units	X6140
Table size(length × width)	mm	1700×400
Number/Width/Distance of T-slot	mm	3/18/90
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	350/330
Cutting feed speed(X/Y/Z)	mm/min	23.5-1180/23.5-1180/8-394
Rapid feed speed(X/Y/Z)	mm/min	2300/2300/770
Spindle speed range	rpm	30-1500
Spindle speed step	steps	18
Max. swivel angle of work table		±45°
Distance between spindle axis and table surface	mm	30-380
Spindle taper		ISO50 7:24
Spindle bore	mm	Φ29
Spindle motor power	kW	11
Feed motor power	kW	3
Overall dimension(L×W×H)	mm	2556×2159×1770
Net weight	kg	3800

Application
1: The X6140 universal lifting table milling machine is a general-purpose machine tool, mainly suitable for batch production, single-piece small batch production, mechanical processing departments, and tool repair departments
2: The X6140 universal lifting table milling machine is suitable for milling various parts with cylindrical, disc milling cutters, angle milling cutters, forming milling cutters and end milling cutters. This milling machine can process planes, bevels, grooves, holes, gears, etc. If a universal milling head, original workbench, dividing head and other milling machine accessories are used, the machine tool processing range can be expanded.
3: The worktable of the X6140 universal lifting table milling machine can rotate 45° to the left and right. When the worktable rotates a certain angle around its vertical centre and is equipped with a dividing head, it can also mill spiral surfaces (such as spiral grooves of drill bits, spiral gears, drum wheels, etc.).

After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.

FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.
4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
