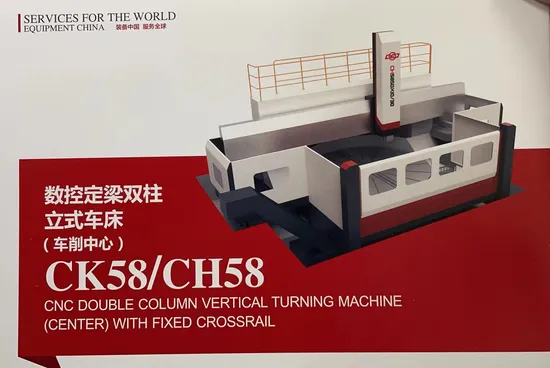

Ck5880 CNC Double Column Vertical Turning Center

Product Description

Product Description
APPLICATION
The machine is suitable for processing materials such as different ferrous metal, non-ferrous metal, non-metal, etc. lt can carry out turning of inner/exterior cylinder surface, conical surface, end-face, rotary curved face, thread, inner and exterior groove as well as constant speed cuutting.
The main performance characteristics:
Machine adopted fixed crossrail gantry structure with high rigidity and stability. Table adopts high accuracy double row roller bearing in radial for centering; in axial pump per pocket hydrostatic· guide way of constant flow s adopted for supporting. Main drive adopts wide field magnet DC motor;2-step mechanic gearbox speed change. Toolhead moves on crossrail, load relief beam is adopted to reduce the bending of crossrail guide way and improve travel accuracy. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. X/Z can adopt optical scale for full closed loop inspection. In table center adopts encoder for constant speed cutting and thread turning Product Parameters

Item	Unit	Model
		CK5840	CK5850	CK5860	CK5880
Max turning diameter	mm	Φ4000	Φ5000	Φ6000	Φ8000
Max turning height	mm	1000	1000	1000	1000
Table diameter	mm	Φ3600	Φ4500	Φ 5000/5500	Φ7200
Table loading capacity	t	40	50	30/50	40
Highest table tuming speed	r/min	63	40	40	25
Max table torque	kN.m	80	125	125	315
Ram section size	mm2	250/280	250/280	250/280	300/300
Max ram travel	mm	1000	1000	1000	1000
Turning main motor power	kW	55	55/67/75	55/67/75	125

Detailed Photos
Workshop
Package
Installation and commissioning
