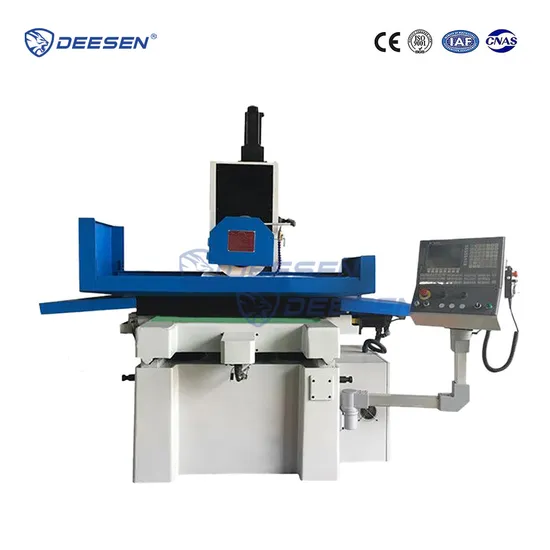

Automatic Flat Surface Grinding Finishing Machine No. of T-Slot 1*14
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK1022
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
1300kg
Max. Workpiece to Be Ground
630*250
Max.Travel of Table
650*250
Table Maximum Cutting Area
630*250
No.of T-Slot
1*14
Distance From Table Surface to Spindle C
450
Wheel Size
200*20*&31.75
Spindle Speed
2850
Table Longitudinal
3~20
Spindle Motor
1.5
Cooling Motor
40
Hydraulic Motor
1.5
Working Pressure
3
Max Capacity
18
Transport Package
Wooden Case
Specification
180cm * 140cm * 200cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month
Packaging & Delivery
Package Size
210.00cm * 170.00cm * 215.00cm
Package Gross Weight
1400.000kg
Product Description
Automatic Flat Surface Grinding Finishing Machine No. of T-Slot 1*14 Product DescriptionApplication: * Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency
* The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working. Product Parameters
| Item | Unit | M1224AHD | M1224NC2 | M1224NC3 | M4080NC3 | |
| Worktable size (L×W) | mm | 600×300 | 600×300 | 650×300 | 800×400 | |
| Worktable traverse (L×W) | mm | 640×320 | 640×320 | 670×320 | 840×420 | |
| Max. Grinding area (L×W) | mm | 640×320 | 640×320 | 670×320 | 840×420 | |
| Number of T-slot | mm | 1×14 | 1×14 | 1×14 | 1×14 | |
| Distance from worktable to spindle center | mm | 490 | 490 | 490 | 580 | |
| Wheel size (OD×W×ID) | mm | 300×30×75 | 300×30×75 | 300×30×75 | 350×40×127 | |
| Spindle speed | rpm | 2850 | 1440 | 1440 | 1440 | |
| Worktable longitudinal speed | m/min | 3-20 | 3-20 | 3-20 | 6-20 | |
Table horizontal feed | Continous (Variable speed) | mm/min | 150 | 150 | 150 | 150 |
| Intermittent (stepless) | m/time | 0-5 | 0-5 | 0-5 | 0-5 | |
| Handwheel rotates | mm | 2.5 | 2.5 | 2.5 | 2.5 | |
| Hanwheel each grid | mm | 0.02 | 0.02 | 0.02 | 0.02 | |
Vertical feed | Handwheel rotates | mm | 2 | 2 | 2 | 2 |
| Hanwheel each grid | mm | 0.01 | 0.01 | 0.01 | 0.005 | |
Vertical MPG feed | The MPG Rotates | mm | 0.1/1/10 | 0.1/1/10 | 0.1/1/10 | 0.1/1/10 |
| MPG each grid | mm | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | |
| Spindle motor | kw | 4 | 4 | 4 | 5.5 | |
| Worktable cross feed motor | kw | 0.06 | 0.06 | 0.06 | 0.06 | |
| Worktable servo motor(Left-Right) | kw | --- | --- | 0.75 | 0.75 | |
| Worktable servo motor(Front-Back) | kw | --- | 0.75 | 0.75 | 0.75 | |
| Vertical feed servo motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | |
| Cooling pump motor | kw | 0.04 | 0.04 | 0.04 | 0.04 | |
| Hydraulic motor | kw | 1.5 | 1.5 | 1.5 | 2.2 | |
| Working pressure | mpa | 3 | 3 | 3 | 3 | |
| Fuel tank capacity | L | 80 | 80 | 80 | 100 | |
| The maximum flow | L/min | 18 | 18 | 18 | 18 | |
| Surface parallelism | mm | 300/0.003 | 300/0.003 | 300/0.003 | 300/0.003 | |
| Surface roughness | um | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 | |
| G.W./ N.W. | kg | 1500/1400 | 1500/1400 | 1500/1400 | 2000/2000 | |
| Packing size (LxWxH) | cm | 200×170×210 | 200×170×210 | 200×170×210 | 230×198×210 | |
| M1224AHD | M1224NC2 | M1224NC3 | M4080NC3 |
| Vertical: AC servo motor | Vertical: AC servo motor | Vertical: AC servo motor | Vertical: AC servo motor |
| Cross: Motor | Cross: AC servo motor | Cross: AC servo motor | Cross: AC servo motor |
| Longitudinal: Hydraulic | Longitudinal: Hydraulic | Longitudinal: AC servo motor | Longitudinal: AC servo motor |
| Controller: GS-PLC Touch | Controller: GS-PLC Touch | Controller: GS-PLC Touch | Controller: GS-PLC Touch |
Detailed Photos
MAGNETIC CHUCK
Standard with pemanet magnetic chuck, easy operate, save much time. It can tighten many parts
and even small parts.
LONGITUDINAL HYDRAULIC
Table longitudinal move,drived by motor.
RAPID LIFTING
Grinding head verticalmove can be adpoted
with power rapid move or hand mocro feed.
OPERATION PANEL
Table moving,auto feed,other operate can be con-
trolled by these buttons and handles.
GRINDING WHEEL
large grinding volume, can grinding various planes
and comples forming surfaces.
Company Profile
FAQ
| 1:How can I choose the most suitable machines ? |
| A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . |
| You can also send us the products drawing ,we will choose the most suitable machines for you . |
| 2: What's your main products of your company? |
| A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . |
| 3: Where is our factory located? How can I visit there? |
| A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. |
| 4. What is your trade terms? |
| A : FOB, CFR and CIF all acceptable. |
| 5: What's the Payment Terms ? |
| A : T/T ,30% initial payment when order ,70% balance payment before shipment ; |
| Irrevocable LC at sight . |
| 6: What's the MOQ? |
| A: 1 set .(Only some low cost machines will be more than 1 set ) |
