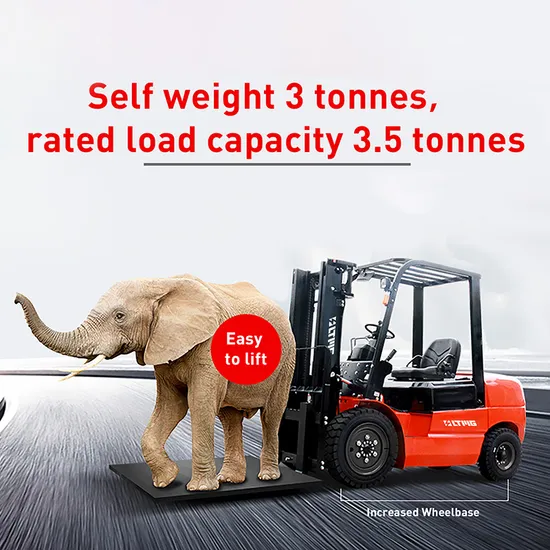

Ltmg 3ton 3.5ton 3.8ton Mini Hydraulic Diesel Forklift Truck with EPA
| US$7,499.00 | 2 set (MOQ) |
Basic Info.
Model NO.
FD38
Cab Location
Not Adjustable
Type
Diesel Forklift
Power
Diesel Engine
Load Capacity
1.5-10 Ton
Fuel
Diesel
Load center
500
Lift height
3-6m
Condition
New
Fork Length
1070/1220/1370/1520mm etc
Max. Lift Height
3m-7m
Engine
Chinese/Japan/Stage III /Stage V/ EPA Engine
Mast
2 Stage/3 Stage
Color
Customized Available
Tire Type
Pneumatic or Solid
Optional
Side Shift, Close Cab, Fork Position, AC
OEM
Available
Certification
CE & ISO&EPA
Attachment
Paper Roll Clamp, Bale Clamp, Crane. etc
Transport Package
Nude Package, Fixed in Container
Specification
2190*1090*2195/2190*1090*2195
Trademark
LTMG
Origin
China
HS Code
8427109000
Production Capacity
800 Units/Year
Packaging & Delivery
Package Size
260.00cm * 125.00cm * 229.00cm
Package Gross Weight
5000.000kg
Product Description
Product Parameters
| Model-Specification | FD30 | FD38 | |||
| Rated load | 3000 | 3500 | |||
| Maximum Load | 3500 | 4000 | |||
| Load Centre | 500 | 500 | |||
| Lifting height | 3000 | 3000 | |||
| Free lift height | 100 | 100 | |||
| Fork size | Length x Width x Thickness | mm | 1070×125×45 | 1070×125×50 | |
| Mast Inclination | Front/Rear | deg | 6/10 | 6/10 | |
| Front Overhang | 481 | 481 | |||
| Rear Overhang | 610 | 610 | |||
| Overall dimensions | Overall length (without forks) | mm | 2865 | 2865 | |
| Overall width | mm | 1230 | 1230 | ||
| Height without lifting | mm | 2070 | 2070 | ||
| Height when the gantry is raised | mm | 4210 | 4210 | ||
| Height of safety canopy | mm | 2190 | 2190 | ||
| Minimum turning radius | mm | 2620 | 2620 | ||
| speed | Travelling speed (unladen) (I/II) | Km/h | 20 | 20 | |
| Travelling speed (full load) (I/II) | Km/h | 20 | 20 | ||
| Lifting speed (unloaded/full load) | mm/sec | 500/480 | 500/480 | ||
| Lowering speed (full load) | mm/se | 400 | 400 | ||
| Maximum tractive effort (fully loaded) | KN | 21 | 22 | ||
| gradient | % | 20 | 20 | ||
| tyres | front wheel | mm | 28×9-15-14PR | 28×9-15-14PR | |
| rear wheel | mm | 6.50-10-10PR | 6.50-10-10PR | ||
| tread | front wheel | mm | 1010 | 1010 | |
| rear wheel | mm | 980 | 980 | ||
| wheelbases | mm | 1800 | 1800 | ||
| ground clearance | At portal frame (empty/full) | mm | 135/120 | 135/120 | |
| At the frame (empty/full) | mm | 160/145 | 160/145 | ||
| self weight | Kg | 4350 | 4650 | ||
Optional Attachment
Optional Configuration
Packaging & Shipping
Company Profile Certifications
FAQ 1. Why choose us? As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of your factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can you accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
