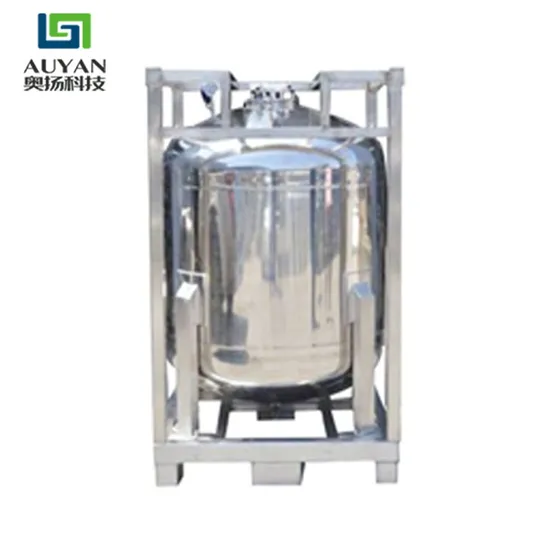

Stainless Steel Electrolyte Storage Tanks Chemical Liquid Storage Tank Electrolyte Tank

Product Description

Product Description Auyan Electrolyte Tank Product Features:
1. The general electrolyte tank type of the industry can also be professionally designed and produced according to the special requirements of customers;
2. The structure of theelectrolyte tankl is simple and reasonable, the airtightness is good, the durability is strong, the use is safe, and the filling and cleaning are convenient;
3. Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals;
4. The whole barrel is made of high-quality 304 stainless steel plate, which is corrosion-resistant;
5. Using argon arc welding technology and plasma welding technology, single-sided welding, and double-sided forming, the working pressure can reach 0.6MPa (otherwise can be customized according to customer needs);
6. It is sealed by standard flange connection and PTFE gasket;
7. Mechanical mirror polishing Ra≤0.4 (or 8K mirror surface) on the outer surface of the tank, electropolishing Ra≤0.4 on the inner surface, bright inside and outside, not easy to rust, and avoid polluting the purity of the electrolyte;
Product Parameters

1000L technical characteristics table
Item	Parameter
Design pressure	0.6MPa
Set tempreture	60°C
Maximum working pressure	0.0098MPa
Maximum operating temperature	normal temperature°C
Stock density	1.09×103Kg/m³
Full volume	1.01m³
Corrosion allowance	0mm
Filling factor	90%
Main material	S30408
Filled water weight	1220Kg
Equipment net weight	210Kg(without frame)
Nozzle and support	by drawing
Paint, Packaging and Shipping	JB/T4711-2003
Note	1. The container is clean and dry, and the inside and outside are clean and free of oily impurities; 2. The take-off pressure of the safety valve is 0.4±0.02MPa, and the gasket is EPDM;

Packaging & Shipping Packing with wooden box and shipping method can be negotiated.
