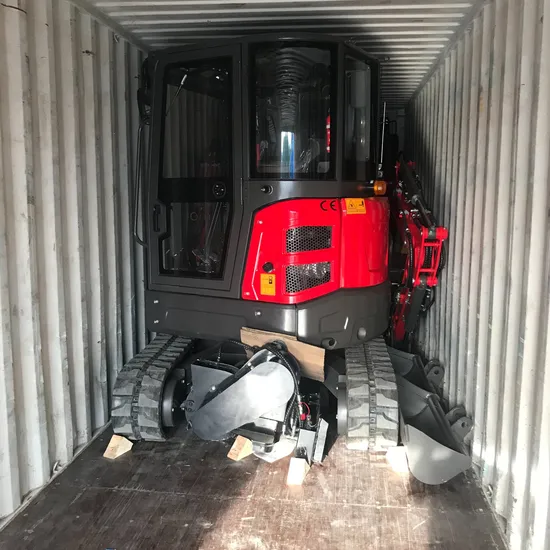

Construction Machinery 4 Ton Mini Hydraulic Excavator
| US$22,160.00-25,160.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FW40J
Type
Crawler Excavator
Usage
Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, TUV SGS EPA
Condition
New
Customized
Support OEM and ODM
MOQ
1 Unit
Working Hour
Over 2000h
Operating Weigh
3200 Kg
Max.Digging Height
4800mm
Traveling Speed(Km/H)
4.4/2.4
Transport Package
Nude / Wooden Box
Specification
4000KG
Trademark
FULLWIN MACHINERY
Origin
Shandong, China
HS Code
8429521200
Production Capacity
5000 Units/Year
Packaging & Delivery
Package Size
492.00cm * 172.00cm * 252.00cm
Package Gross Weight
4000.000kg
Product Description
Product Parameters
| Specifications | Dimensions | ||
| Traveling Speed(km/h) | 4.4/2.4 | Overall Width(mm) | 1720 |
| Swing Speed(r/min) | 0-11 | Overall Length(mm) | 4915 |
| Max. Bucket Digging Force(kN) | 30.4 | Overall Height(mm) | 2525 |
| Arm Digging Force(kN) | 18.2 | Mini Ground clearance(mm) | 295 |
| Ground Pressure(kPa) | 32 | Track width(mm) | 300 |
| Hydraulic system pressure(Mpa) | 22.5 | Axle base(Track length on ground)(mm) | 1670 |
| Machine Weight(kg) | 3810 | Length of track(mm) | 2154 |
| Boom Length(mm) | 2535 | Track Gauge(mm) | 1420 |
| Arm Length(mm) | 1400 | Swing radius at tail(mm) | 860 |
| Fuel Tank Capacity(L) | 42 | Swing radius at the front(mm) | 2538 |
| Hydraulic Tank capacity(L) | 48.5 | Height of blade(mm) | 350 |
| Engine oil capacity(L) | 7 | Max. Digging Radius(mm) | 5480 |
| Carrier roller(each side) | 1 | Max. Digging Depth(mm) | 3208 |
| Supporting roller(each side) | 4 | Max. Dumping Height(mm) | 3406 |
Product Description
Available Accessories
Company Profile
Q1. Are you a manufacturer? A: Yes, we are a factory with more than 3 years of manufacturing experience.
Q2. How can we guarantee quality?A: There will be a pre-production sample check before mass production and a final inspection before shipment. Q3. What are your terms of delivery? A: EXW, FOB, CFR, CIF. Q4. How about your delivery time? A: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
Q5. How much is the freight fee?A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.
Q6. What are your terms of packing? A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods. Q7. Can you customize or support ODM/OEM?A: Yes, with sufficient quantities, we can customize unique designs and colors for you.
Q8. How do you make our business a long-term and good relationship? A: We keep good quality and competitive prices to ensure our customers' benefits; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
