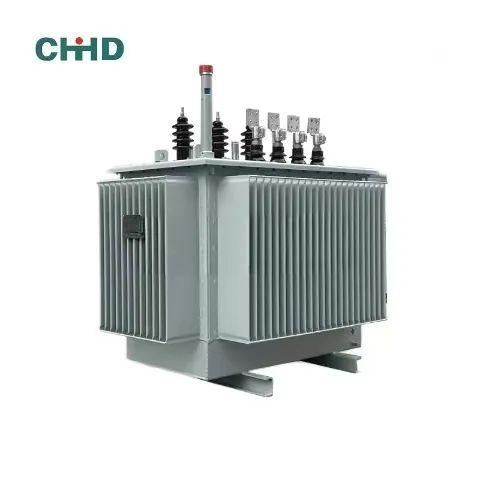

Hot Products Layer Coil Structure Three Phase Oil Immersed Transformer

Product Description

Product Description
Introducing Yangzhou Huading Electric Co., Ltd.'s cutting-edge marvel: the high-efficiency oil-immersed transformer! Meticulously engineered to be an industry vanguard, it excels in both energy conservation and environmental sustainability. Utilizing oil as a dual-purpose medium for insulation and cooling, this transformer showcases outstanding power conversion capabilities paired with exceptional heat dissipation performance. Perfectly tailored for robust power transmission and distribution systems, it is crafted to significantly minimize energy consumption, enhance grid efficiency, and markedly reduce its environmental footprint. Key Features 1. Energy Efficient: Highlighting an optimized design, our transformer minimizes core and coil losses, significantly boosting energy conversion efficiency and drastically slashing operating energy consumption, making it an indispensable keystone in cost-effective power solutions. 2. Low Loss: Constructed from premium silicon steel sheets and leveraging advanced manufacturing processes, it effectively curtails no-load and load losses. This innovation delivers a substantial reduction in the total operating costs of the power system, ensuring unparalleled economic efficiency. 3. Excellent Heat Dissipation: Utilizing oil as a cooling agent, it efficiently dissipates heat via natural convection or forced oil circulation, guaranteeing stable and reliable operation even under heavy load conditions, thereby extending the equipment's lifespan. 4. Environmentally Friendly Design: Fully compliant with both national and international energy-saving and environmental protection standards, it aids in significant reduction of carbon emissions and environmental pollutants, making it the quintessential choice for green energy initiatives and modern eco-friendly power grids, fostering a sustainable and environmentally conscious future. 5. Safe and Reliable: Crafted with robust insulation materials and meticulous precision, the transformer ensures safe and steadfast operation even in the most demanding grid environments, offering peace of mind and unwavering reliability. Product Parameters

Product Model	Rated Capacity(kVA)	Connection Group	No-Load Loss	Load loss(W)(120°)
S11-M-50/35	50	Yyn0 Dyn11	160	1200/1140
S11-M-100/35	100		230	2010/1910
S11-M-125/35	125		270	2370/2260
S11-M-160/35	160		280	2820/2680
S11-M-200/35	200		340	3320/3160
S11-M-250/35	250		400	3950/3760
S11-M-315/35	315		480	4750/4530
S11-M-400/35	400		580	5740/5470
S11-M-500/35	500		680	6910/6580
S11-M-630/35	630		830	7860
S11-M-800/35	800		980	9400
S11-M-1000/35	1000		1150	11500
S11-M-1250/35	1250		1400	13900
S11-M-1600/35	1600		1690	16600
S11-M-2000/35	2000		1990	19700
S11-M-2500/35	2500		2360	23200

Product Advantages: Our oil-immersed transformer is set apart by its superior performance and exceptional attributes.
We offer bespoke customization services to precisely meet your distinct needs and specifications.
Experience unrivaled insulation coupled with superior heat dissipation performance, ensuring optimal reliability.
Benefit from impressively low no-load losses, reduced noise levels, and a prolonged service life, ensuring enduring performance. Certifications
Company Profile
FAQ 1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request. 3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances. 4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection. 5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.
