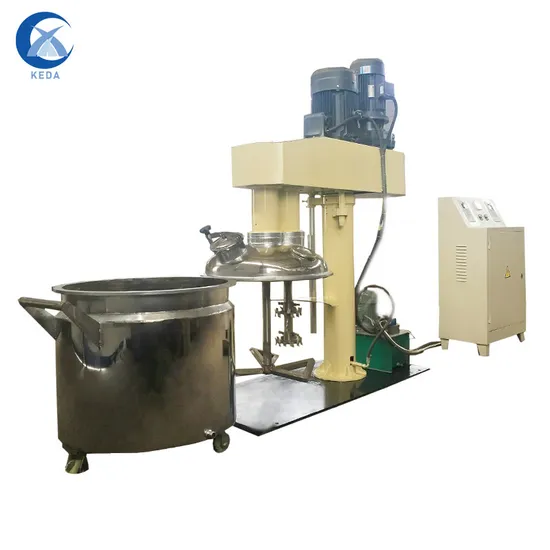

Double Shaft High Speed Disperser Machine for High Viscosity Material

Product Description

Product Description
high speed disperser is widely applied in dispersing paste such as color paint paint, ink, dye, adhesion, ceramic glaze, magnetic recording materials etc. Disperser is the a good solution for mixing, dispersing and dissolving. There are 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.
Characteristics:
1. Reliable frequency=conversion speed control;
2. Hydraulic lifting and pneumatic lifting;
3.360degrees; Rotary positioning for convenient using.
TECHNICAL PARAMETER-HIGH SPEED PAINT DISPERSER

Model	Dimension	Weight	Speed/rpm		Disc head	Lifting distance /mm	Oil	Pump power	Mixing tank	Shaft
2.2KW	1300*700*1400	320KG	0-1250	0-1650	150-200	800	4-5KG	0.75KW-6 /1.1KW-4	5-100L	45
3KW	1300*700*1400	400KG	0-1250	0-1650	200	800			50-300L
4KW	1500*600*1400	450KG	0-1250	0-1650	200	800			100-500L
5.5KW	1750*700*1750	550KG	0-1250	0-1650	250	1100			200-1000L	50
7.5KW	1800*700*1750	680KG	0-1250	0-1650	250	1100			200-1000L
11KW	2100*700*1800	620KG	0-1250	0-1650	280	1150			500-1000L	55
15KW	2100*700*1800	650KG	0-1250	0-1650	300	1150			500-1500L
18.5KW	2100*700*1800	780KG	0-1250	0-1650	350	1150			500-1500L
22KW	2100*700*1800	850KG	0-1250	0-1650	200-350	1200			500-1500L
30KW	Customized	950KG	0-1250	0-1650	200-400	1300-1400			1000-2000L	65
37KW		1000KG	0-1250	0-1650	200-500	1400			1000-3000L	Customized
45KW		Customized	0-1250	0-1650	200-500	1400			1500-3000L
55KW			0-1250	0-1650	200-500	1400-1500			2000-4000L

Keda company welcome you
Company Information
Laizhou Keda Chemical Machinery Co., Ltd.is located in the picturesque and rich Bay of Laizhou. The company depending on its abundant technical strength and advanced equipment,has been a leading chemical machinery enterprise in Shandong Province. Now it has a fixed capital of RMB 5 million, a floor area of more than 10,000 square meters and more than 50 staff including several Senior Technical and marketing engineers.
Since the establishment of the company,it has devoted to research and development of industry equipment for coatings, paints, petroleum, chemical industry, pharmacy, cosmetics, rubber, dyes, printing ink, leather auxiliaries, plastics, etc. Products of the company include reaction series, grinding series, diffusion series, emulsification series, kneading series, mixing series, filtration series and extrusion series, which can be categorized in to 8 series and more than 80 varieties, being popular around China and exported to more than 20 countries.
Facing increasingly fierce market competition, the company always comes in line with the business philosophy of "Quality First, Service Uppermost", and wholeheartedly provides the best products and after-sales service for customers. Welcome to our company for negotiation and cooperation!


Packaging & Shipping Standard wooden cases or shipping

Our Services 1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way, do not include the daily maintaining
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
FAQ
Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
Q: Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters for you and send you the detailed drawings. Once you confirm without questions, we will put it into production.
Q: Can we pay the balance after we receive the machines and test without problems?
A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
