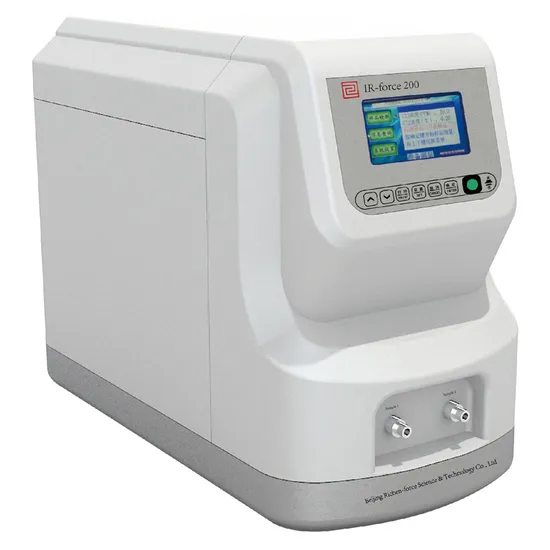

13c Infrared Spectrometer Ananlyzer (IR-Force 200)

Product Description

IR-force 200
The 13C Infrared Spectrometer IR-force 200 is composed of high selective 13CO2 and 12CO2 detectors, which are used to analyze the CO2 exhaled by a patient in order to diagnose whether this patient is infected by the Helicobacter Pylori.
The engineering experience of the RICHEN MEDICA SCIENCE group developed over many years has brought this infrared system within the means of every professional, giving them special integrated sensors NDIR for the measurement of the isotopic rapport 12C / 13C in samples of breath tests following the administration of a marked substrate 13C.
The instrument is easy to install and does not require maintenance. IR Force 200 has a high rate of accuracy (< 0.3 6 %0 13C) and an optimal steadfastness of execution, assisted by the exclusive system of reading controlled by a special integrated thermometer that stabilises the temperature maintaining it constant.
IR Force 200 possesses an integrated internal calibrator and does not require cylinders, thereby allowing a reading in under 2 minutes for samples of breath tests of 120 ml in aluminium bags.
The software allows the user a constant monitoring of all the operations and functionalities. The system is equipped with an automatic recording and patient analysis results procedure.
1. Compact design with Built-in Computer and Printer

2. High precision (0.3‰), High reliability

3. Easy to Use

4. Test time less than 3mins

5. SFDA approval, CE Certificate
Certificate:
This machine has a built-in printer and a LCD screen. It can work independently, or linked to a computer.
Clinic application: To test Helicobacter Pylori in human stomach and duodenum.
Normal Working Conditions:

Power supply	a.c.100~240V, 50/60Hz
Input power	≤180VA
Altitude	below 2000m
temperature	5ºC~40ºC
Relative humidity	no more than 80%
Air pressure	86kPa~106kPa
Warm-up time	15-45 min (depending on environment)

Features:
High accuracy: Less than 0.3δ ‰ 13C;
Easy operation:
1. Start the equipment;
2. Collect patients' breath samples;
3. Machine automatically analyzes and prints the report;
Quick test: Each test takes less than 3 mins;
Powerful database management: The software has memory, check, sort data and analysis functions;
Self-checking function: Unique self-diagnosis, self-adjusting functions. Users are very well informed about its working condition;
Low cost operation: Low power, no other gas consumption;
Friendly software operation screen: English operation screen, easy to use.
