40feet Container Crane Tong Container Spreader Bar for Container Equipment Lifting Container Lifts

Product Description

Product Description
The twin-lift, telescopic, rotating, semi automatic, container spreader is suitable for 20ft,40ft,45ft standard container lift. Different type container spreader suit for different containers. Our container spreader drive by hydraulic system. This new type container spreader is suitable for frequent work place.

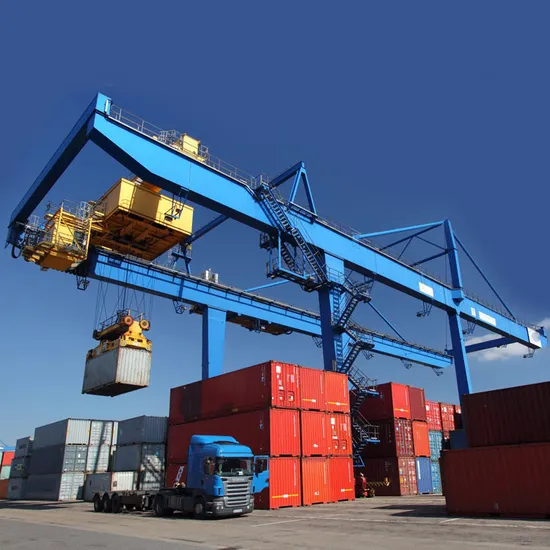

Container spreader can lifting twin 20ft containers at the same time. It made of hanger structure, rotary lock device, guiding device, a telescopic device and hydraulic system , with orientation alignment, automatic opening and locking, automatic telescopic function, in order to work quickly and accurately to container loading and unloading.The sling is provided with a mechanical or hydraulic telescoping mechanism, in20ft to45ft range expansion, in order to adapt to different specifications of container handling requirements.Guide device has a fixed guide plate and belt turning plate two, to achieve the spreader is positioned, with fixed guide spreader used for tire type gantry crane, rail type gantry crane for loading and unloading machinery, and with automatic turning plate (4 of each turning plate can be controlled separately) of the spreader is generally applied in the shore container cranes.
We also provide you with other types of container cranes to choose from. It depends on your requirements, if you have any other question or want to know more info please contact us!



Telescopic Container Spreader
The telescopic container spreader is suitable for 20ft,40ft,45ft standard container lift. The telescopic container spreader is the most widely used in port crane container spreader.




Rotating Container Spreader
The rotating container spreader is suitable for 20ft,40ft,45ft standard container lift.
The rotating container spreader is suitable for rotating containers.



Semi Automatic Container Spreader
The semi automatic container spreader is suitable for 20ft,40ft,45ft standard container lift.
The semi automatic container spreader is simple structure.
This container spreader can drive by electric or mechanical.
Specification

Container speader technical specifications
For operation with ISO standard 20',40', 45' and twin 20' containers		Control voltage	AC 380V/50HZ DC 24V(as agreed)
		Total power	~8KW
SWL (Concentric/ Single mode)	40T	Precaution class	IP 55
SWL (Eccentricity / Twin 20' mode)	65T	Operating pressure of the system	120bar
Load of lifting lugs at four corner	19.5t×4	Ambient temperature	-20ºC ~+55ºC
Self-weight (spreader)	~13t	Twist lock Mode	ISO floating twist lock, driven by an oil cylinder
Expansion time (20'to 45')	~ 30 S	Telescopic Mode	The telescopic system is driven by means of a hydraulic motor and reduction gearbox connected to an endless chain.
Twist lock rotation 90°	~ 1 S
Flipper through 180°	5~7S	Flippers Device	The flippers are drived by hydraulic
Power voltage/ Frequency	AC 380V (3P)/50HZ	Application	Portal crane, Jib crane, QC, RMG, RTG
Operating mode	Control box with touch scrcen and Application Wireless remote	Electric Control	SIEMENS

Automatic balancing function
Container spreaders can automatically balance the tilting of goods caused by container handling, without worrying about damage to the goods
Reasonable structure
Compact and reasonable structure, light weight, excellentperformance and convenient operation
Good carrying capacity
Can be used for loading and unloading containersof various specifications

High efficiency, save time and effort
Easy length adjustment, good versatility and highproduction efficiency
If you have specification please contact us to get more exact quotation.
