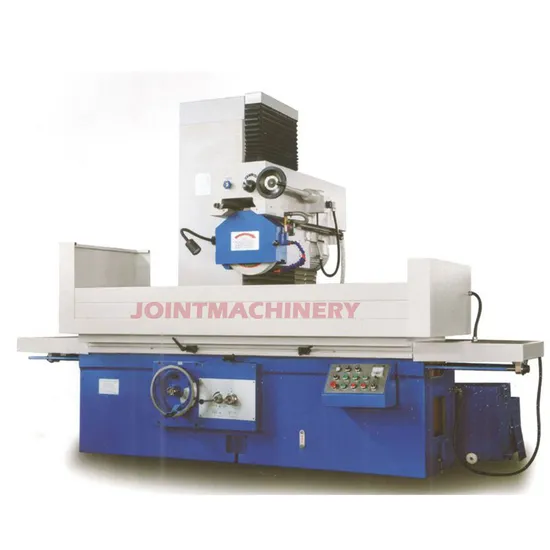

Precision Metal Hydraulic Surface Grinding Machine with Horizontal Spindle and Rectangular Table

Product Description

1. Transform your grinding capabilities with the Advanced Surface Grinder, designed to expand your work surface. Effortlessly accommodate larger workpieces and experience unparalleled versatility and efficiency in your grinding operations.
2. Marvel at the movable grinding head structure, ingeniously crafted to merge front and rear sections into a seamless, cohesive design. This integration provides exceptional rigidity and stability, ensuring your operations are conducted with precision and reliability.
3. Experience the power of hydraulically driven movements, where the worktable's longitudinal and the grinding head's lateral movements boast stepless speed regulation. Tailor the lateral feeding to fit your needs, choosing between manual or fully automated options for ultimate flexibility and precision.
4. Enjoy the ease of the grinder's vertical feed, manually operated yet equipped with a quick lifting mechanism. This innovation significantly reduces labor intensity, heightening user comfort and maximizing operational efficiency.
5. Witness the grinding head's engineering masterpiece, featuring a tapered sliding bearing and a spindle that promises remarkable rigidity and precision. Bolstered by a 7.5kw motor, this machine delivers robust and efficient grinding operations to meet your highest demands.
6. Embrace the user-friendly design of this machine tool, operating with silky smoothness and low noise. Achieve high grinding efficiency with outstanding performance, positioning this machine as the premier choice for precision tasks.
1. Precision Grinding Head
Elevate your operations with this manual grinding head, meticulously enhanced with a rapid lifting mechanism and a powerful built-in motor. Engineered for exceptional rigidity and precision, it ensures your grinding results reach unprecedented levels of excellence.
2. Efficient Electromagnetic Chuck
Boost your productivity with the user-friendly electromagnetic chuck, designed for seamless operation. Capable of continuous usage exceeding 20 hours, it is the perfect choice for high-demand tasks, optimizing both time management and productivity.
3. Premium Metal Hand Wheel
Command precision with the high-precision metal feed handwheel, offering effortless control and an astounding accuracy level of 0.002MM. Its superior grinding model redefines precision engineering, ensuring top-tier performance with every use.
4. Advanced Double V Guide Rail
Revel in the precision of the innovative double V guide rail, skillfully paired with a single V flat guide rail laterally and a hydraulic drive. This combination assures extraordinary precision and reliability, enhancing the machine's consistent performance.
5. Durable Resin Sand Cast Iron Body
Experience the pinnacle of stability and strength with our expertly crafted resin sand cast iron body. Enhanced by artificial aging treatment, these castings ensure dimensional accuracy, delivering optimized finishing and precision for the most demanding applications.
Precision Metal Hydraulic Surface Grinding Machine with Horizontal Spindle and Rectangular Table

Model		Unit	M7163x12	M7163x16	M7163x20
Worktable size		mm	630*1250	630*1600	630*2000
Maximum grinding size		mm	630*1250*600	630*1600*600	630*2000*600
Longitudinal movement of worktable (hydraulic)		mm	200-1350	200-1700	200-2100
Worktable speed (stepless speed)		m/min	5-25	5-25	5-25
No. of T-slots on worktable		pcs	3	3	3
Width		mm	18	18	18
Worktable load (including electronic chuck)		kg	980	1200	2000
Electronic chuck size		mm	630*1250	630*800 (2pcs)	630*1000 (2pcs)
Grinding head transverse feed (stepless speed)
Continuous		mm/min	0.8-3	0.8-3	0.8-3
Intermittent		mm/pcs	5-25	5-25	5-25
Vertical handwheel minimum scale		mm	0.01	0.01	0.01
Vertical feed of grinding head per hand wheel rotation		mm	0.5	0.5	0.5
Grinding wheel size		mm	400*50*203	400*40*203	400*50*203
Total capacity of electrical equipment		kva	15	16	20
Grinding head motor
Power		kw	9	9	9
Speed		r/min	1440	1440	1440
Parallelism of machined surface to base surface		mm	300:0.008	300:0.008	300:0.008
Workpiece surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Machine tool dimensions		mm	3800*2100*2500	4700*2100*2500	5600*2100*2500
Packing size		mm	4010*2300*3000	4600*2300*3000	5200*2300*3000
Net weight		kg	5500	6500	7500
