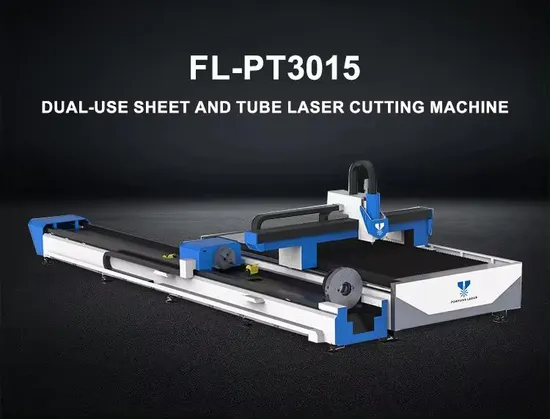

China Manufacture Square and Round Tube Laser Cutting Machine 2 in 1 Multifunctional Metal Cutting Stainless Steel Pipe Machine CNC Fiber Laser Cutting Machine

Product Description

1500W 2000W 3000W CNC Metal Tube and Plate 2 in 1 Fiber Laser Cutting Machine

Machine Characters
Servo dual-drive gantry structure: Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;
Stable and practical: Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
Industrial aesthetics design: Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
The operation is simple and easy to use: More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;
High-quality cutting: High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;
Efficient material: Used in the standard specifications of metal sheet cutting, saving time and material;
Fiber laser: Use Raycus and Maxphotonics laser(Other brands laser are also optional), stable and reliable power in the domestic top brand, performance guaranteed;

Machine configuration
Model	Fiber Laser Cutting Machine FL-PT Series
Laser source	1000W-6000W Raycus/Max/IPG
CNC Cutting System	Professional CNC cutting system CPYCUT
Laser head	OSPRI/Gangchun/Precitec/Raytools
Machine bed	Fortune Laser
X/Y axis gear rack	YYC
Precision linear guide	ROUST/TBI/SHAC/HIWIN
Motor Drive	Japan Yaskawa Servo motor (X750W/Y750W/Z400W)
Electronic components	France Schneide r
Pneumatic components	Japan SMC
Machine bed accessories	Fortune Laser
Water chiller	Hanli/Teyu

Note: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details. Machine Parts
Strong machine lathed bed
The lathed bed is after aging treatment: 1600ºChigh temperature heat treatment, 24 hours with furnace cooling and precise co2 protection welding, which ensures along-term stability and no deformation.
Aerospace-grade aluminum gantry
Aerospace-grade aluminum light quality, high speed, good dynamic response, fast acceleration.
Beam as a whole by the finite element analysis optimization of high rigidity, lightweight design, and durable.
Raytools laser head
(1). Famous brand in China.
(2). Laser cutting head with high precision fiber laser dedicated anti-collision cutting head to ensure high cutting accuracy and cutting efficiency.
Cypcut control system
Cypcut controller is designed for sheet metal processing industry launched a full-featured open-loop control system.
Easy installation, easy adjustment, excellent performance, and complete solutions are popular fiber laser cutting machine control systems.
Pneumatic Chuck Design
The front and rear chuck clamping design is convenient for installation, labor-saving, and no wear and tear. Ensure the stability of feeding and cutting accuracy; Automatic adjustment of the center, suitable for various pipes, high chuck rotation speed, can improve processing efficiency.

Machine Parameters

Model	FL-PT3015	FL-PT4015	FL-PT6020
Working Area (L*W)	3000*1500mm	4000*1500mm	6000*2000mm
X/Y Axis Position Accuracy	±0.03mm/1000mm	±0.03mm/1000mm	±0.03mm/1000mm
X/Y Axis Repeat Position Accuracy	±0.02mm	±0.02mm	±0.02mm
Max Moving Speed	80000mm/min	80000mm/min	80000mm/min
Max Acceleration	1.0g	1.0g	1.0g
Power Supply	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Laser Source Power(Optional)	1kW/1.5kW/2kW/2.5kW/3kW/4kW/6kW

Applications
Suitable for processing metal sheets such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.
