CD6260c Chinese Suppliers Precision Gear Head Manual Metal Disc Rotor Lathe

Product Description

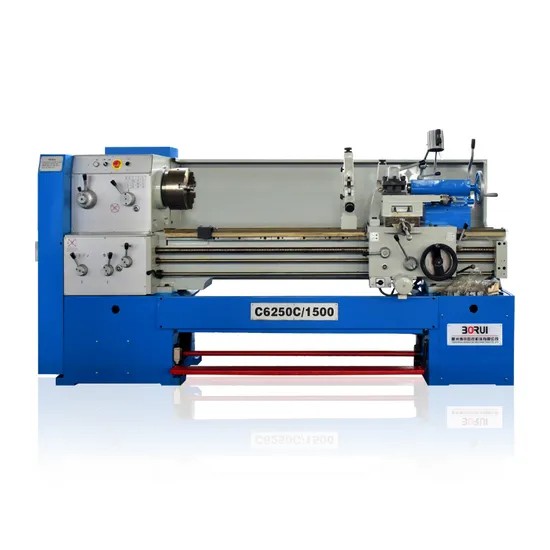

CD6260C Chinese Suppliers Precision Gear Head Manual Metal Disc Rotor Lathe
Product Application Feature:
◊ Oversized spindle bore of 80mm;
◊ Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand;
◊ Outward appearance of machine features large plains, making the machine more good-looking;
◊ Gapped bedways, which are super-audio frequency hardened (HB450 plus);
◊ All gears hardened and ground by Reishauer grinding machine;
◊ Leadscrew and feedrod interlocked, both with overload protection;
◊ Automatic feed stopper;

Product main technical parameters:

Specifications	CD6140C CD6240C	CD6150C CD6250C	CD6160C CD6260C	CD6166C CD6266C
Max. swing over bed	420mm	500mm	600mm	660mm
Max. swing over cross slide	225mm	325mm	360mm	425mm
Center Distance	1000/1500/2000/3000mm
Max. swing over gap	550mm	630mm	730mm	790mm
Effective length of gap	260mm
Bed Width	330mm
Spindle hole	80/103mm
Spindle nose	ISO-D8 or ISO-D11
Spindle taper	Metric 85mm/115MM
Spindle speed	24-1600/20-1200(15 steps)
Metric threads range	0.5-28mm(66 kinds)
Inch threads range	1-56/inch(66 kinds)
Moudle threads range	0.5-3.5mm(33 kinds)
Diametral threads range	8-56D.P(33 kinds)
Longitudinal feeds range	0.072-4.038mm/rev(0.0027-0.15 inch/rev)(66 kinds)
Cross feeds range	0.036-2.019mm/rev(0.0013-0.075 inch/rev)(66 kinds)
Rapid traveling speed of carriage	5mm/min
Lead screw size:diameter pitch	35mm/6mm
Cross slide travel	300mm
Compound rest travel	130mm
Cross-section size of toolshank	25x25mm	25x25mm	25x25mm	25x25mm
Taper of tailstock sleeve	Morse No.5
Dia. of tailstock sleeve	65mm
Travel of tailstock sleeve	120MM
Main drive motor	5.5kw or 7.5kw			7.5kw
Coolant pump motor	0.125kw
Rapid traverse motor	0.12kw
Size(1000mm)	2420x1150x1800mm
Size(1500mm)	2920x1150x1800mm
Size(2000mm)	3460x1150x1800mm
Weight(1000mm)	1640/2290kg	1700/2350kg	1800/2500kg	1860/2600kg
Weight(1500mm)	1850/2550kg	1910/2610kg	2010/2760kg	2070/2860kg
Weight(2000mm)	2090/2860kg	2150/2920kg	2250/3070kg	2310/3170kg

Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
