Hiah Speed Paper Cup Making Machine with Hiah Efficiency

Product Description

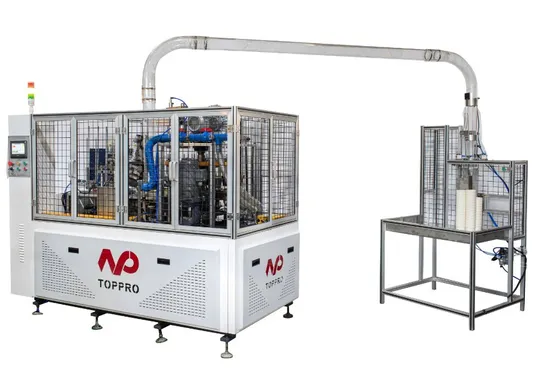

Product Description LF-90 automatic mid-speed paper cup machine
LF-90 MID-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.
Our Advantages 1.Machine Main part uses the Geneva open cam makes driving more accurate, faster, and more reliable stability.
2.The sliding block is imported from Taiwan, this block has a long lifetime, and high precision.
3.Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.
4.Imported electrical parts and PLC controlling, easy operation on touch screen, makes machine more intelligent.
5.The main motor with brake, can set the testing stop positioning, debugging positioning to be higher precision, also to ensure the safety of debugging person. Main technical paremeter

Model	LF-90
Raw Material	Single pe or Double pe
Speed	80-100PCS\Min
Voltage Supply	380v,50hz
General Power	9kw
Net Weight	2200kgs
Measurement	2300X1250X1800(mm)
Cup side sealing	Ultrasonic sealing

Company Profile Wenzhou TOPPRO Machinery Co..Itd. is a professional manufacturer of paper container machine, who was established in 1999,located in Ruian City,Zhejiang Province, China. Our pros paper cup machine, paper bowl machine, paper cone machine, die punching machine and so on. The company occupy an area of 9033.74 square meters. The company has obtained CE & SGS certificates. In past 10 years, we have successful foreign trading experience in Europe, South America, Africa and Southeast Asia/ Mideast. We pursue "quality first, service paramountcy", welcome the clients at home and abroad to cooperate. FAQ Q:Is your company a factory or a trading company?
A:we are machinery factory and has 20 years experience in forgein trader industry.
Q:Where is your factory? How can I visit your company?
A:our factory location is 7# yongding road,songjiadai industrial park,feiyun town,ruian city,zhejiang province,china. You can by plane from your country to wenzhou city airport,then we will pick you up by car.
Q:What information should I let you know if I want to get a quotation?
A:Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.
Q:what is your delivery time?
A:Automatic High speed Paper Cup Making Machine Price need 25 -30 days in normal,if your order is urgent,we can discuss about that.
After Sales Service 1. one year warranty
2.24 hours after service for technical support
3.provide free training
