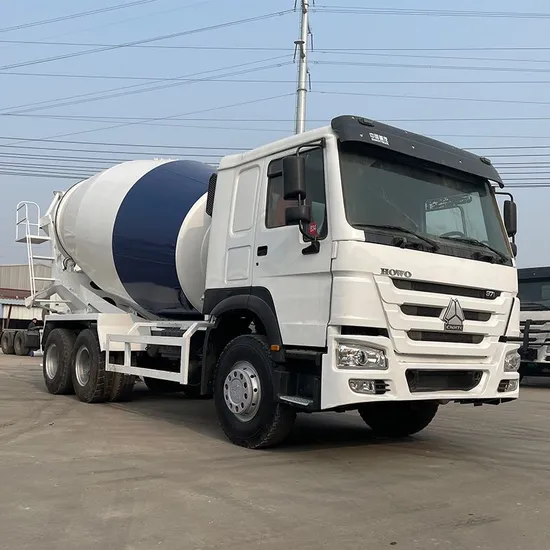

6X4 10wheels HOWO Cement 14 Cubic Meters Self Loading Mobile Used Concrete Mixer Truck

Product Description

Howo Concrete Mixer Truck is a special truck used to transport concrete for construction; because of its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.
During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space. Howo Concrete Truck is constructed with high-tensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps. Advantage: 1. Wear-resistant strips are installed on the top of the blade to extend the service life
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the
barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The sub-frame adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international first-class brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.

Whole Vehicle Performance & Parameters	Chassis	HOWO
	Curb Weight (Kg)	10450
	Total Vehicle Weight (Kg)	25000
	Outline Dimension(L*B*H) (mm)	9040×2496×3850(mm)
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)
	Gear Box	HW19710
	Driving Type	6*4
	Steering Mechanism	ZF8118
	Front Axle	HF9 Drum
	Rear Axle	HC16
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00R20
Engine Parameters	Model	WD615.47
	Type	In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine
	Emission Standard	Euro II
	Displacement	9.726(L)
	Max Power (KW)	371 HP(2200rpm)
	Drum capacity	12cbm

Company Profile
Shandong Tiger International Trade Co., Ltd. belongs to ZW Group, the headquarters office is located in Jinan, Shandong, and the construction machinery factory is located in Shanghai, China. Our inventory includes: Excavators Bulldozers Wheel loaders Motor graders Dump trucks Cranes Tractortrucks Semi Trailers.
We are committed to providing our customers with the best possible experience. Our team of experienced professionals is here to help you find the right equipment for your needs and get it to you quickly and efficiently.
Packaging & Shipping
FAQ 1.Do you have your own factory?
We have our own factory with 10 years experiences in trailer production.Also we own modified factory for trucks.Besides trucks and trailers,various international brand earthmoving machines is available.We sincerely welcome you to visit our factory.
2.How long it will take for an order to be delivered?
15 to 20 working days after we received your 30% payment inadvance or 100% L/C at sight. The specific delivery time depends on the items and the quantity of your order.
3.Can I get a sample or order 1 unit?
Yes, our MOQ is 1 set.
4.What is the time for delivery?
If standard model we have in stock can ship it out within 10 days after payment. If used trailer or truck,we can ship it out within 10 days after payment. Because we have to renovate and paint it. If it is a new production, usually cases in 20 days can be finished for shipment.
5.What's your payment terms?
T/T: 30% deposit by T/T,70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter at sight.
