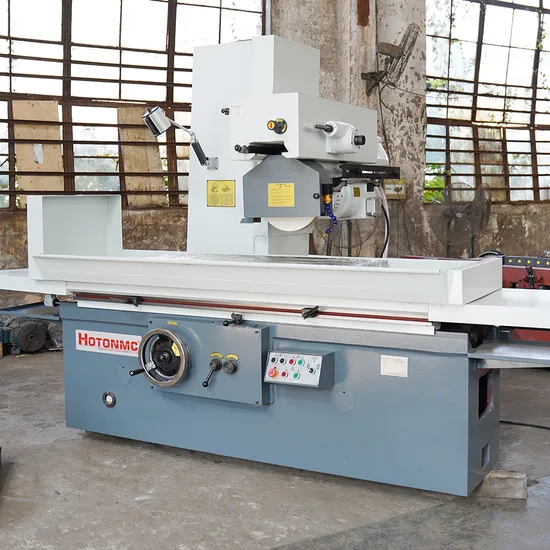

M7163 Precision Flat Hydraulic Surface Grinding Machine for metal
| US$18,000.00-23,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7163
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
surface grinding machine
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
630X1250mm
T-Slot Number X W
5X18
Power
12kw
Wheel size (ODxWxID)
400x40x127mm
Transport Package
Plywood Case
Specification
5000kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
WHEEL HEAD MOVING SURFACE GRINDING MACHINE FEATURES:
1.The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
2.The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
3.The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
4.The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation.
5.The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
SPECIFICATIONS:
| Model | M7163*1250 | M7163*1600 | M7163*2000 | |||
| Working tanle | Table size(L×W) | mm | 1250*630 | 1600*630 | 2000*630 | |
| Max movement of working table(L× W) | mm | 1350 | 17000 | 2100 | ||
| T-Slot(number×width) | 5×18 | 5×18 | 5×18 | |||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 800 | 800 | 800 | |
| Max travel of grinding head | Cross(Manual and hydraulic) | mm | 700 | 700 | 700 | |
| Vertical(Manual) | mm | 600 | 600 | 600 | ||
| Spindle speed | rpm | 1440 | 1440 | 1440 | ||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ400×40×φ127 | φ400×40×φ127 | φ400×40×φ127 | ||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | ||
| Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | ||
| Total power | kw | 12 | 12 | 12 | ||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | |
| Speed | r/min | 1440 | 1440 | 1440 | ||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.37 | |
| Speed | r/min | 1440 | 1440 | 1440 | ||
| Oil pump motor | Power | kw | 4 | 4 | 4 | |
| Speed | r/min | 960 | 960 | 960 | ||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | |
| Speed | r/min | 2800 | 2800 | 2800 | ||
| Oil pump | Flow | L/min | 125 | 125 | 125 | |
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | ||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | |
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | ||
| Net Weight | kg | 5100 | 5150 | 5200 | ||
| Overall dimension(L×W×H) | mm | 3.8x2.7x2.8 | 4.5x2.7x2.8 | 5.5x2.7x2.8 | ||
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
