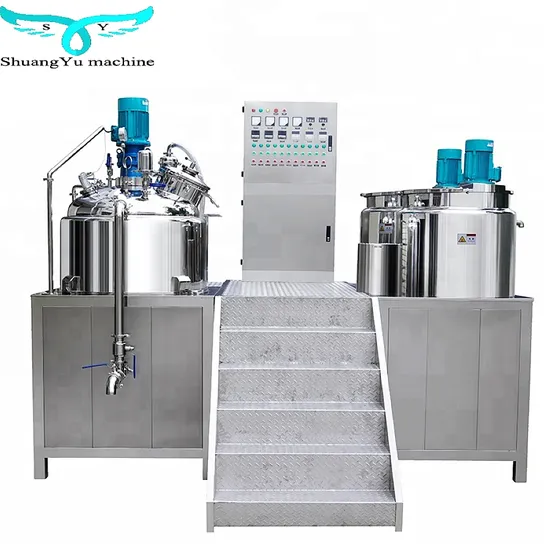

Vacuum Mixer Emulsion Homogenizer Machine for Body Cream Ointment

Product Description

Vacuum homogenizer for making body cream lotion, face ceam, hand cream, cosmetics paste etc Product Description
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Features:
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

Model	Effective	Emulsifying Motor		Agitator		Vacuum pump		electirc Heating power/kw	Steam heating pressure /Mpa
	Capcity/L
		KW	RPM	KW	RPM	KW	Limit Vacuum
SME-5L	5	0.55	0-3600	0.4	0-65	0.37	-0.1	6	0.2
SME-10L	10	1.1	0-3600	0.55	0-65	0.37	-0.1	6	0.2
SME-20L	20	1.5	0-3600	0.55	0-65	0.37	-0.1	9	0.2
SME-50L	50	3	0-3600	0.75	0-65	0.75	-0.1	12	0.2
SME-100L	100	4	0-3600	1.5	0-65	1.5	-0.1	24	0.2
SME-200L	200	5.5	0-3600	1.5	0-65	2.2	-0.1	28	0.2
SME-300L	300	7.5	0-3600	3	0-65	2.2	-0.1	32	0.2
SME-500L	500	11	0-3600	4	0-65	4	-0.1	50	0.2
SME-1000L	1000	15	0-3600	5.5	0-65	4	-0.1	54	0.2
SME-2000L	2000	18.5	0-3600	7.5	0-65	5.5	-0.1	recommend steam hetaing	0.2
SME-5000L	5000	22.5	0-3600	15	0-65	7.5	-0.1		0.2
The parameters for reference ONLY, all the machines can be customized accordingly.

After-sales Service
1.Warranty time: one year, from the date which the product is qualified commissioning.
Any damage except the wrong operation during warranty period is repaired freely.But the travel and hotel expenses should be count on buyer.
2. Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Training services: our engineers will train your staff to operate it during the period of installation and commissioning,
and they will not leave there until your staff can operate it properly and normally.
4. Maintenance services: any malfunction happened, once you inquiry us, we will reply you within 48 hours except the special reasons.
5. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8. The file: the Manual Specification, report of the material which used to the equipment and other documents related to the GMP authentication information will be provided by us.
RFQ
Q: Are you a factory?
A: Yes we are a factory with more than 20 years manufacturing experience. One is in Jiangsu,
Another is in Guangzhou next to our office.
Q:I'm new in our industry,but I'm planing to set up a factory, what can I do?
A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q:Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them.
