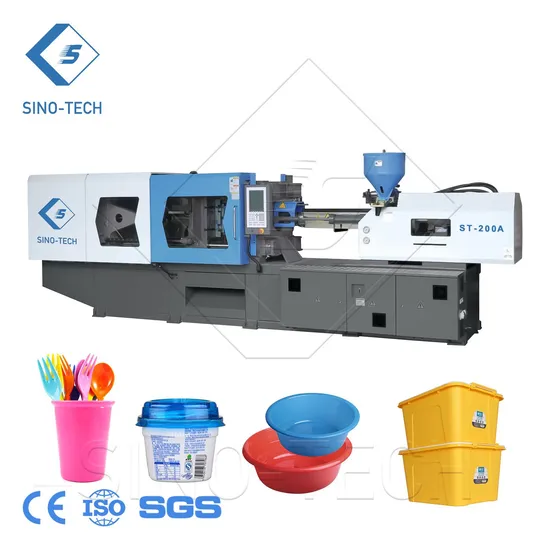

Plastic Storage Box Making Injection Machine

Product Description

Plastic Storage Box Making Injection Machine
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification
Product Description
SINO-TECH ST-series with clamping force ranges from 50 to 4000 ton injection molding machine. Besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine, high speed injection machine.Main Features1.Arch template, effectively protects the mold, especially suitable for big template with small mold.2.The electric ruler is installed on the crosshead, the position is more precise.3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.5.Connected movable plate, improves its rigidity and reduces deformation6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.7.Arch template fully complies with mechanical property, largely improves template strength.8.More reasonable toggle design, speeds and stabilizes mold opening and closing.9.Adjustable movable plate mounting plate, makes the installation easier.
10.Mixed design of T-shape groove and die hole, increases universality of the mold.
Product Parameters

ITEM	UNIT	ST-550A
INJECTION UNIT
SCREW DIAMETER	mm	80	85	90
SCREW L/D RATIO	L/D	22.3	21	19.8
THEORETICAL SHOT VOLUME	cm³	2141	2418	2710
SHOT WEIGHT99(PS)	g	1948	2200	2466
INJECTION PRESSURE	Mpa	188	167	149
THEORETICAINIECTION RATE(PS)	G/s	427	482	541
PLASTICISING CAPACITY	G/s	80	100	118
SCREW TORQUE	N.m	5170
MAX.SCREW ROTATE SPEED	R/min	150
INJECTION STROKE	mm	425
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	5500
MAX.OPENING STROKE	mm	820
SPACE BETWEEN TIE BARS	mm	810*810
MOULD HEIGHT	mm	350-820
MAX DAYLIGHT	mm	1640
EJECTOR FORCE	KN	150
EJECTOR STROKE	mm	210
EJECTOR QUANTITY		13
OTHER
PUMP MOTOR POWER	KW	55
PUMP PRESSURE	MPa	16
HEATING POWER	KW	33
HEATING ZONE		6
SIZE	m	8.4*2.2*2.6
NET WEIGHT	t	23.5
OIL TANK CAPACITY	L	1000
INTERNATIONAL DESIGNATION		5500-4040
