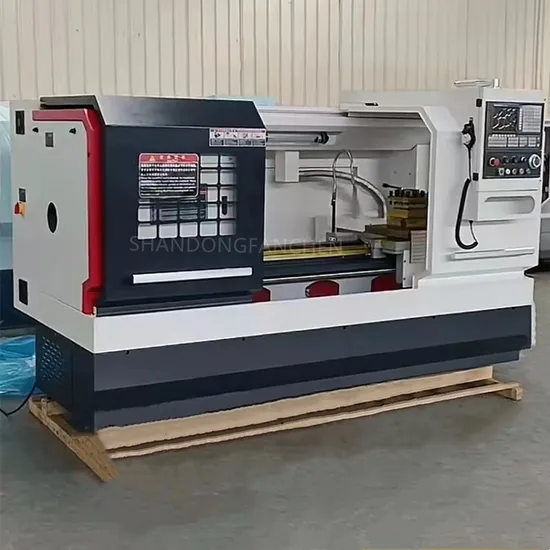

Ck6150 Horizontal CNC Lathe Metal Cutting Wide Number System High Precision
| US$8,900.00-19,980.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6150
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
500
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ82
Width of Guide
400
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
20-2600
Tailstock Sleeve Stroke
150
Tool Dimension
25*25
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
300.00cm * 160.00cm * 170.00cm
Package Gross Weight
2800.000kg
Product Description
| Items | CK6150 | |
| Swivel diameter on the bed | mm | Φ500 |
| Maximum swing diameter on the slide | mm | Φ280 |
| Processing length | mm | 1000//1500/2000/3000/4000 |
Spindle drive form | Three speed endless shift | |
Spindle speed | rpm | 21-70 48-1600 100-350 |
| Numerical control system | Siemens840 | |
Spindle end form and code | A2-8/C8 | |
Spindle through-hole inner diameter | mm | Φ82 |
| Spindle motor power | KW | 7.5 |
Chuck size | mm | 250 |
| Lead screw specification | mm | Φ40*8 |
| X/Z feed motor torque | NM | 6/10 |
| X/Z repeated positioning accuracy | mm | 0.01/0.015 |
| Workpiece machining accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tail seat sleeve diameter | mm | Φ75 |
| Tailstock sleeve stroke | mm | 150 |
| Tailstock sleeve taper hole | MT5 | |
| Tool rest form | Electric four-station | |
| Tool dimension | mm | 25*25 |
| Width of guide | mm | 400 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
