Reliable Performance Teflon Toroid Coil Winding Hook for Tensioner Parts
Basic Info.
Model NO.
oho37
Material
Teflon
Processing Level
Precision Finishing
Mechanical Process
Grinding
Processing Trade
Processing with Material Supplied
Certification
CE
Customized
Customized
Condition
New
Export Market
Global
Port
Shenzhen
Brand
Hartai
Automatic
Non-Automatic
Type
Tensioner Parts
Size
Request
Transport Package
as Per Order
Specification
ce, iso
Trademark
hartai
Origin
Dongguan
HS Code
8548900090
Production Capacity
50000
Product Description
Winding Coil Machine Teflon Toroid Single Coil Winding HookDetailed Product Description:

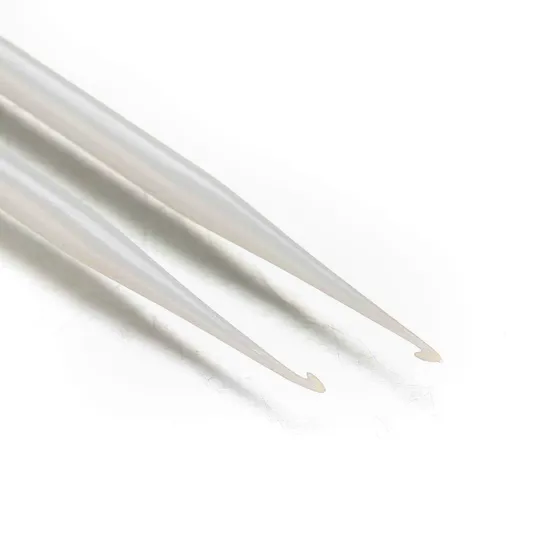

Toroid coil winding hook is made from Teflon, Nylon. It is one light And handy, high-strength, resilient tool. It is used for winding toroid coil. Make. The wire be wraped tight with the toroid core. Avoid the magnetic wire of insulation Film be damaged. The single hook there are screw which need connect with the Handle to use(the handle is optional), or used in hook winding machine. The double Hook can be used to wind direct.
Avoid the magnetic wire of insulation Film be damaged. The single hook there are screw which need connect with the Handle to use(the handle is optional), or used in hook winding machine. The double Hook can be used to wind direct.
| Description | Part No. | Suited wire Dia. | W(mm) | T(mm) | L(mm) | D(mm) |
| hand held double hook | 21 | ≤ 0.14mm | 0.94 | 0.44 | 130.00 | 7.00 |
| hand held double hook | 12 | ≤ 0.14mm | 1.00 | 0.50 | 130.00 | 7.00 |
| hand held double hook | 23 | ≤ 0.14mm | 0.92 | 0.50 | 130.00 | 7.00 |
| hand held double hook | 24 | ≤ 0.16mm | 0.96 | 0.60 | 130.00 | 7.00 |
| hand held double hook | 25 | ≤ 0.16mm | 1.04 | 0.70 | 130.00 | 7.00 |
| hand held double hook | 8 | ≤ 0.16mm | 1.00 | 0.68 | 130.00 | 7.00 |
| hand held double hook | 22 | ≤ 0.16mm | 1.10 | 0.64 | 130.00 | 7.00 |
| hand held double hook | 7 | ≤ 0.16mm | 1.20 | 0.86 | 130.00 | 7.00 |
| hand held double hook | 11 | ≤ 0.2mm | 1.48 | 0.84 | 130.00 | 7.00 |
| hand held double hook | 26 | ≤ 0.3mm | 1.29 | 0.76 | 130.00 | 7.00 |
| hand held double hook | 6 | ≤ 0.4mm | 1.85 | 1.34 | 130.00 | 7.00 |
| hand held double hook | 29 | ≤ 0.4mm | 2.10 | 1.37 | 130.00 | 7.00 |
| hand held double hook | 27 | ≤ 0.45mm | 2.60 | 1.40 | 130.00 | 7.00 |
| hand held double hook | 28 | ≤ 0.45mm | 2.22 | 1.34 | 200.00 | 7.00 |
| hand held double hook | 5 | ≤ 0.5mm | 2.90 | 1.74 | 130.00 | 7.00 |
| hand held double hook | 14 | ≤ 0.7mm | 3.21 | 1.84 | 200.00 | 7.00 |
| hand held double hook | L14 | ≤ 0.7mm | 3.20 | 1.84 | 220.00 | 7.00 |
| hand held double hook | 18 | ≤ 0.7mm | 3.1 | 1.6 | 200.00 | 7.00 |
| hand held double hook | 9 | ≤ 0.8mm | 3.75 | 2.00 | 247.00 | 7.00 |
| hand held double hook | 16 | ≤ 0.8mm | 3.78 | 2.34 | 215.00 | 7.00 |
| hand held double hook | L16 | ≤ 0.8mm | 3.78 | 2.34 | 230.00 | 7.00 |
| hand held double hook | 15 | ≤ 1.0mm | 4.66 | 3.24 | 200.00 | 7.00 |
| hand held double hook | L15 | ≤ 1.1mm | 4.70 | 3.10 | 220.00 | 7.00 |
| hand held double hook | 10 | ≤ 1.1mm | 5.80 | 3.20 | 247.00 | 7.00 |
| hand held double hook | 17 | ≤ 1.3mm | 5.80 | 3.90 | 225.00 | 7.00 |
| hand held double hook | L17 | ≤ 1.3mm | 5.80 | 3.90 | 250.00 | 7.00 |
| hand held double hook | 3 | ≤ 1.7mm | 7.00 | 4.80 | 240.00 | 11.62 |
| hand held double hook | 4 | ≤ 2.0mm | 10.00 | 7.00 | 240.00 | 10.0 |
