20/30/40 Bar High Pressure Multipurpose Rubber Air Hose PVC Air Hose Pipe 1/4′′ 3/8′′ 1/2′′ 3/4′′ 1′′ for Water Fuel Oil Compressor Pump
| US$0.50-3.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
pvc air hose
Color
Color
Hollow
Hollow
Shape
Round
Usage
Gas Transfer
Feature
High Pressure,Anti-UV
Application
Supply Water,Oil,Gas
Length
50m/100m
Thickness
5.5mm-10mm
Reinforcement
High Strength Fiber
Working Pressure
20 40bar
Certification
CE ISO
MOQ
1000 Meters
Sample
Free Sample
Transport Package
Reinforced Clear Film Wrapped with Label
Specification
1/4"-1"
Trademark
ET
Origin
Shandong, China
HS Code
39173900
Production Capacity
3000tons/Year
Product Description

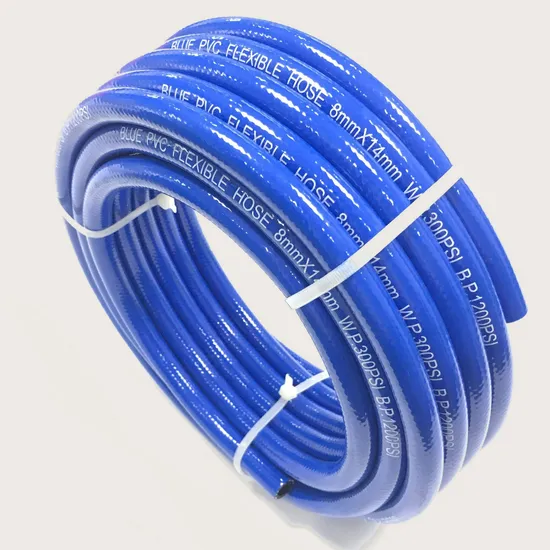

20/30/40 Bar High Pressure Multipurpose Rubber Air Hose PVC Air Hose Pipe 1/4'' 3/8'' 1/2'' 3/4'' 1'' for Water Fuel Oil Compressor Pump| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 1/4 | 6 | 11.5 | 20 | 300 | 60 | 900 | 102 | 100 |
| 1/4 | 6 | 12 | 40 | 600 | 120 | 1800 | 115 | 100 |
| 5/16 | 8 | 14 | 20 | 300 | 60 | 900 | 140 | 100 |
| 5/16 | 8 | 15 | 40 | 600 | 120 | 1800 | 170 | 100 |
| 3/8 | 10 | 16 | 20 | 300 | 60 | 900 | 165 | 100 |
| 3/8 | 10 | 17 | 40 | 600 | 120 | 1800 | 200 | 100 |
| 1/2 | 13 | 19 | 20 | 300 | 60 | 900 | 203 | 100 |
| 1/2 | 13 | 20 | 40 | 600 | 120 | 1800 | 245 | 100 |
| 5/8 | 16 | 24 | 20 | 300 | 60 | 900 | 340 | 50 |
| 5/8 | 16 | 25 | 40 | 600 | 120 | 1800 | 390 | 50 |
| 3/4 | 19 | 28 | 20 | 300 | 60 | 900 | 450 | 50 |
| 3/4 | 19 | 29 | 30 | 450 | 90 | 1350 | 510 | 50 |
| 1 | 25 | 34 | 20 | 300 | 45 | 675 | 560 | 50 |
| 1 | 25 | 35 | 30 | 450 | 90 | 1350 | 640 | 50 |
