PA Mini Electric Wire Rope Hoist PA200-PA1200 High Speed Electric Winch Hoist and Electric Mini Winch

Product Description

Product Description

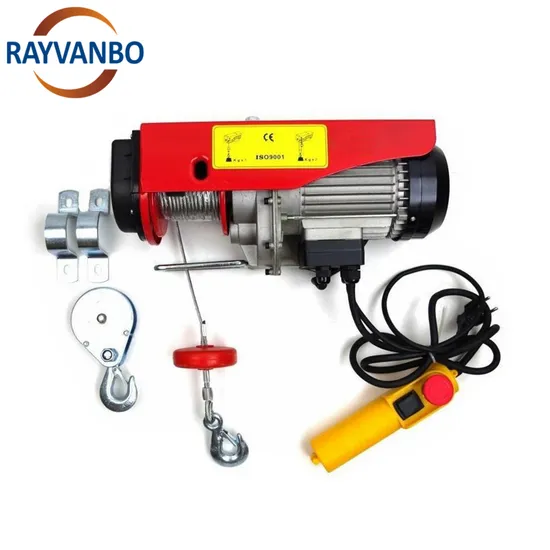

MINI electric rope hoist
PA Mini Electric Hoist is a small material handling equipment, used to load and move goods under 1200kgs. It uses 1 phase power supply, can lift by single rope or double rope, maximum can hold 30m wire rope length.
Mini Electric Hoists have fix type and run type. They are suitable for all occasions, and can lift the cargo which is less than 1000 kgs, especially for high-rise building to lift heavy items from downstairs. This kind of hoists are simple structure, easy installation, small size and single phase power as a power source.
Mini electric hoist as a new electric hoist is widely used in machinery manufacturing, electronics, automotive,shipbuilding,work piece assembly, high-tech industrial zone and other modern industrial production line, assembly line,logistics transportation and other occasions. For the warehouse, docks, ingredients,hanging baskets and small workplace with narrow space to use the micro electric hoists, can be show its advantages. It is the best supporting products in fixed type jib crane and wall type jib crane. Micro electric hoist have good appearance, reasonable structure, easy installation,low noise, safe and reliable. So they are widely used in factories, workshops, homes, warehouses, hotel, shopping malls and decoration, and other places. Features of Mini Electric Hoist:
1. Adopt urgent stop switch and reinforced breaking switch with position limit. Protection class up to IP54, with thermal protection device.
2. Lifting hook can rotate 360degree
3. Excellent control characteristics, minimal setting force required, designed for one-handed operation.
4. Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.
5. Motor insulation is B, magnetic single-phase. Double hook use, single hook use
6. Caged roller bearings on drum center shaft
7. Mini electric hoist speed can reach 10 m / min, the initial design rope length is 12 meters (longer can be customized), the hook specially designed with advanced settings, greatly increases the lifting weight of the mini electric hoist.
8. Simple structure, easy installation, small size, and single-phase power as a power source.
9. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
Product Parameters

Model	Rated Capacity(KG)	Motor Power(KW)	Lifting Speed(M)	Standard rope length(M)	Packing size(cm)
PA200	100	510w	10/5	12	37*14*22
	200
PA300	150	600w	10/5	12	37*14*22
	300
PA400	200	980w	10/5	12	43*16*25
	400
PA500	250	1020w	10/5	12	43*16*25
	500
PA600	300	1200w	10/5	12	43*16*25
	600
PA800	400	1300w	10/5	12	43*16*25
	800
PA1000	500	1600w	8/4	12	55*25*30
	1000
PA1200	600	1800w	8/4	12	55*25*30

Packaging & Shipping
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.
