Feeder Protection and Control Ref615/ Small Comprehensive Protection Relay/Hbfaabaandc1bna11g Relay Protection

Product Description

Product Description Protection relays
Numerical relays are based on the use of microprocessors. The first numerical relays were released in 1985.A big difference between conventional electromechanical and static relays is how the relays are wired. Electromechanical and static relays have fixed wiring and the setting is manual. Numeric relays, on the other hand, are programmable relays where the characteristics and behavior can be programmed. Most numerical relays are also multifunctional. Feeder protection and control REF615 IECREF615 is a specialized feeder protection and control relay designed for the protection, control, measurement, and supervision of public substations and industrial power systems, including radial, circular, and mesh distribution networks with or without distributed generation. REF615 is a member of the Relion product line and a part of its 615 protection and control product line. The characteristics of the 615 series relays are their compactness and withdrawable unit design.
The 615 series has been redesigned from scratch with the aim of unleashing the full potential of the IEC 61850 standard in communication and interoperability between substation automation equipment.
Relay provides primary protection for overhead lines and cable feeders in the distribution network. In applications that require independent and redundant protection systems, relays are also used as backup protection.

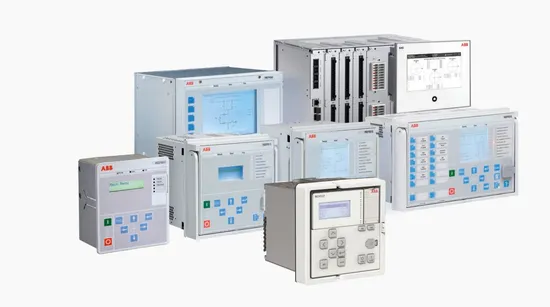

According to the selected standard configuration, relays are suitable for the protection of overhead lines and cable feeders in isolated neutral points, resistance grounding, compensation, and stable grounding networks. Once the standard configuration relay is assigned application specific settings, it can be directly put into use. Detailed Photos
Product Parameters

Technical data
Dimensions
Description	Value
Width	Frame	177 mm
	Case	164 mm
Height	Frame	177 mm (4U)
	Case	160 mm
Depth		201 mm (153 + 48 mm)
Weight	Complete protection relay	4.1 kg
	Plug-in unit only	2.1 kg
Power supply
Description	Type 1	Type 2
Nominal auxiliary voltage U n	100, 110, 120, 220, 240 V AC, 50 and 60 Hz	24, 30, 48, 60 V DC
	48, 60, 110, 125, 220, 250 V DC
Maximum interruption time in the auxiliary DC voltage without resetting the relay	50 ms at U n
Auxiliary voltage variation	38...110% of U n (38...264 V AC)	50...120% of U n (12...72 V DC)
	80...120% of U n (38.4...300 V DC)
Start-up threshold		19.2 V DC (24 V DC × 80%)
Burden of auxiliary voltage supply under quiescent (P q)/operating condition	DC <13.0 W (nominal)/<18.0 W (max.)	DC <13.0 W (nominal)/<18.0 W (max.)
	AC <16.0 W (nominal)/<21.0 W (max.)
Ripple in the DC auxiliary voltage	Max 15% of the DC value (at frequency of 100 Hz)
Fuse type	T4A/250 V

Energizing inputs
Description		Value
Rated frequency		50/60 Hz
Current inputs	Rated current, In	0.2/1 A 1	1/5 A 2
	Thermal withstand capability
	Continuously	4 A 1	20 A
	For 1 s	100 A 1	500 A
	Dynamic current withstand
	Half-wave value	250 A	1250 A
	Input impedance	<100 mΩ	<20 mΩ
Voltage inputs	Rated voltage	60...210 V AC
	Voltage withstand
	Continuous	240 V AC
	For 10 s	360 V AC
	Burden at rated voltage	<0.05 VA

1	Display	Default view can be selected from single line diagram (SLD), measurements and main menu
2	Self-supervision and protection indicator LEDs	Ready-LED steady: OK, Ready-LED flashing: Internal Relay Fault (IRF), Start-LED steady: protection started, Start-LED flashing: protection function blocked, Trip-LED: protection operated
3	Programmable LEDs	Can be programmed for alarming and indication with latching and/or flashing features
4	Control Circuit Breaker (CB)	Press open/close and confirm by pressing enter. If there is more than one controllable object select the object first with navigation buttons. Note: control has to be in Local mode.
5	Escape / Cancel	Used for canceling actions and leaving setting mode without saving the values. Returns back to menu.
6	Navigation	Left = go back, Right = go further, Up = scroll up, Down = scroll down. Up/down can also be used when selecting controllable objects like breakers and switches in single line diagram.
7	Enter / Select	Entering to parameter setting mode and confirming new values
8	Authorization	If authorization is used you can log in or log out using this button
9	Clear	Clearing events and indications, see next page for further details
10	Menu	Switch views in between the main menu, single line diagram and measurements
11	Local / Remote	Changes the control between Local/Remote
12	Help	View help messages

Standard configurations
Description	Std. conf.
Non-directional overcurrent and directional earth-fault protection	A
Non-directional overcurrent and directional earth-fault protection and circuit-breaker condition monitoring (RTD option)	B
Non-directional overcurrent and earth-fault protection	C
Non-directional overcurrent and earth-fault protection and circuit-breaker condition monitoring (RTD option)	D
Non-directional overcurrent and directional earth-fault protection, voltage-based measurements and circuitbreaker condition monitoring (RTD option)	E
Directional overcurrent and earth-fault protection, voltage-based protection and measurements, and circuitbreaker condition monitoring (RTD option)	F
Directional overcurrent and earth-fault protection, voltage-based protection and measurements, and circuitbreaker condition monitoring (sensor inputs and optional synchro-check with IEC 61850-9-2 LE)	G
Non-directional overcurrent and earth-fault protection, voltage and frequency based protection and measurements, synchro-check and circuit-breaker condition monitoring (RTD option)	H
Directional overcurrent and earth-fault protection, voltage and frequency based protection and measurements, synchro-check and circuit-breaker condition monitoring (optional power quality and RTD option)	J
Directional and non-directional overcurrent and earth-fault protection, high-impedance restricted earth-fault protection, voltage and frequency based protection and measurements, synchro-check and circuit-breaker condition monitoring (optional power quality and fault locator)	K
Directional and non-directional overcurrent and earth-fault protection with multifrequency neutral admittance, voltage, frequency and power based protection and measurements, and circuit-breaker condition monitoring (sensor inputs, optional power quality, fault locator, interconnetion protection and synchro-check with IEC 61850-9-2 LE)	L
Directional and non-directional overcurrent and earth-fault protection with multifrequency neutral admittance, voltage, frequency and power based protection and measurements, high-impedance differential protection, synchro-check and circuit-breaker condition monitoring (optional power quality, fault locator and interconnection protection)	N
