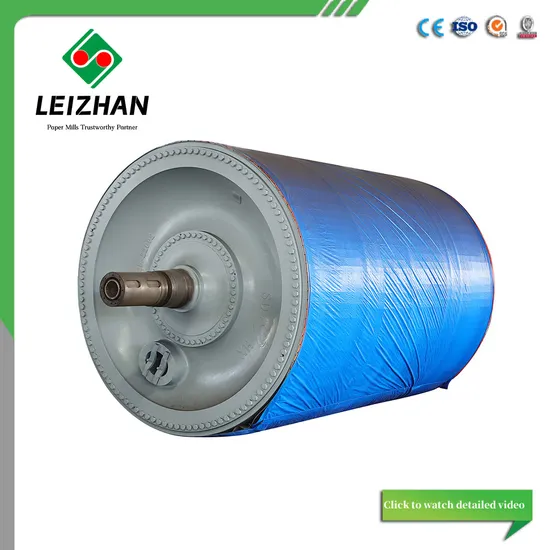

Cast Iron Steel Ci Dryer Mg Yankee Cylinder for Paper Machine

Product Description

Product Description
Dryer Cylinder is divided into: Cast Iron Dryer Cylinder, Steel Dryer Cylinder, Yankee Dryer Cylinder
All dryer cylinders, heads, and journals are special cast iron. Separate journals are bolted onto the dryer heads. Dryer shells are ground on the outside and turned on the inside. All dryer journals with steam or condensate pipes have insulation sleeves. The inner surfaces have grooves for the stationary siphons. The front side ends of all dryers contain manholes.
Cast iron materials are excellent in durability. This is because the free-form flake graphite in the cast iron material ensured its high corrosion and erosion resistance. The cast iron also has good fatigue strength under the pressure roller forces. At the same time, cast iron has good surface performance and does not need metal spraying treatment like a steel dryer.
Detailed Photos
Structure of Dryer Cylinder
The main parts of the dryer include: Shell,Turbulator bars,Syphon, Shell head,Manhole cover,bearing ,Head cover, Steam Joint .
Production Process

Product Parameters

Diameter	Design Pressure Mpa	Material	Hardness	Width	Shell Thickness	Roughness	Working speed
1500	0.3-0.8	HT250-300	190-240	350-10000	25-32	0.2-0.4	200-1200
1800	0.3-0.8	HT250-300	190-240	350-10000	28-36	0.2-0.4	200-1200
2000	0.3-0.8	HT250-300	190-240	1350-5000	30-40	0.2-0.4	200-1200
2500	0.3-0.8	HT250-300	190-240	1350-5000	32-47	0.2-0.4	200-500
3000	0.3-0.8	HT250-300	190-240	1350-5000	37-56	0.2-0.4	200-600
3660	0.3-0.8	HT250-300	190-240	1350-5000	40-65	0.2-0.4	200-1200
3680	0.3-0.8	HT250-300	190-240	1350-5000	as required	0.2-0.4	200-1200
≤1500	0.3-0.5	HT200-250	190-240	1350-5000	18-27	0.2-0.4	200-1200

Packaging & Shipping
Accessories
Main accessories of paper machine yankee dryer are Rotary Joint, Siphon, Turbulator bars, Gear, Bearing and bearing house. Company Profile
