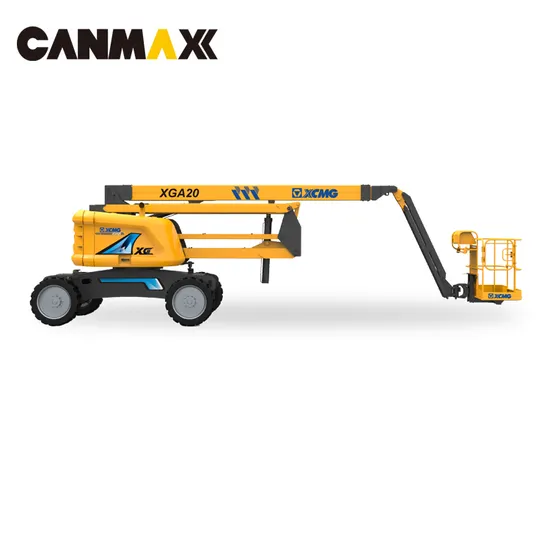

Xuzhou Factory 20m Towable Hydraulic Articulating Boom Lift Xga20K Cheap Price on Sale

Product Description

Product Description
Articulating boom lift XGA20K is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.
Advantages and features:
1. 256/350 kg of double load and big load design, load performance in the industry advanced level.
2. Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
3. Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.
4. Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.
5. Compact clever, vehicle layout is compact, convenient for container transportation.

Detailed Photos
Product Parameters

Item	Unit	Parameters
Overall length	mm	8520
Overall width	mm	2300
Overall height	mm	2400
Wheelbase	mm	2500
Max. working height	m	20.63
Max. platform height	m	18.63
Max. working range	m	12.08
Max. carrying weight	kg	256(unlimited)/350(limited)
Scope of luffing of No. 1 arm	°	0~+72
Scope of luffing of Boom No.2	°	0~+73
Crank arm luffing range	°	-64~70
Slewing angle of turntable	°	360
Max. Tail swing	mm	0.54
Dimension of platform	mm	1830×760×1150
Slewing angle of platform	°	160
Overall weight	kg	9900
Max. traveling speed	km/h	5.5
Min. turning radius	m	5
Min. ground clearance	mm	330
Max. gradeability	%	45
Specification of tire	/	355/55D625
Engine model	/	YCF3050-T302
Engine rated power	kW/(r/min)	36.8/(2400)

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.
