Reclaimed/ Natural/ Silicon Rubber Strainer in China

Product Description

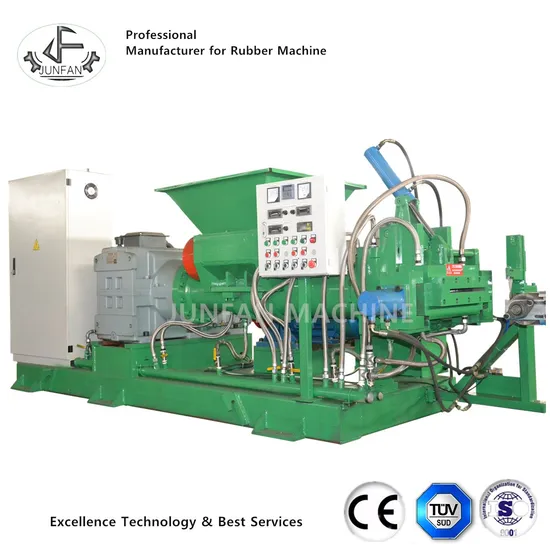

Reclaimed/ Natural/ Silicon Rubber Strainer in China
All our machines can be customized according to your requirements.
>>The advantage for the Strainer
1. Compared with the old process, the use of a rubber mixer and workers is reduced, and the production cost is greatly reduced. Moreover, the feeding effect is good and the filtering ability is strong, which greatly reduces the work intensity of the workers and reduces the investment cost.
2. the use of double filter disc head, hydraulic push-pull replacement filter, fast operation, no leakage of glue, save time, effort.
3. the screw speed is adjustable, can match the speed of the front and rear equipment, improve resource utilization, safety and energy saving.
4. It adopts hard-tooth surface reduction box for extruder, which has low noise and long service life.
5. The barrel and screw are made of high-quality alloy steel 38CrMoALA. After quenching and tempering, it is wear-resistant and durable.
6. with automatic cutting rubber device to reduce the labor intensity of workers
>>Brief Introduction of Each Part of this rubber strainer
The machine is mainly composed of a forced feeding mechanism, a screw, a barrel, a filter head, an automatic rubber cutting device, a temperature control system and a transmission device.
Base
The base is an integral welded structure and is machined after annealing.
Motor
The motor uses a variable frequency motor.
Reducer:
Form: With a full hardened gear reducer.
Lubrication method : Spray and splash lubrication
Screw
1) Material: 38CrMoALA, the surface is polished by nitriding, hardness ≥ HV950, hard layer depth ≥ 0.55mm;
2) Structure
a> Throughout the length of the screw, it is a hollow structure to facilitate temperature control.
b> inside the screw, water pressure test for more than 1 hour, no leakage.
Machine barrel
1) barrel material: 38CrMoAlA, inner hole nitriding treatment, hardness HV950 ~ 1000,
Hard layer depth ≥ 0.55mm.
2) The cylinder cooling water channel shall be 10kg/cm2, and the water pressure test for more than 1 hour shall not leak.
Machine head
1) Adopt double-disc hydraulic push-pull structure.
2) Electric cutting rubber.
3) The head cooling water channel shall be 10kg/cm2, and the water pressure test for more than 1 hour shall not leak.
Feeding mechanism
1) Feed motor speed is adjustable, matching the speed of the main motor.
2) The outer body of the feeding port is made of stainless steel.
3) The internal pressure of the feeding rotor is 10kg/cm2, and the water pressure test for more than 1 hour shall not leak.
>>MAIN TECHNICAL SPECIFICATION

Model	XJL-150	XJL-200
Diameter of screw	150mm	200mm
L/D	6.3	6
Rational speed of screw steam	60r/min	50r/min
Main Motor Power	45KW	75KW
Feeding Material Motor Power	5.5KW	7.5KW
Steam Pressure	0.2--0.4MPa	0.2--0.4MPa
Cooling Water Pressure	0.2-0.4MPa	0.2-0.4MPa
Capacity	500 Kg/h	900 Kg/h
