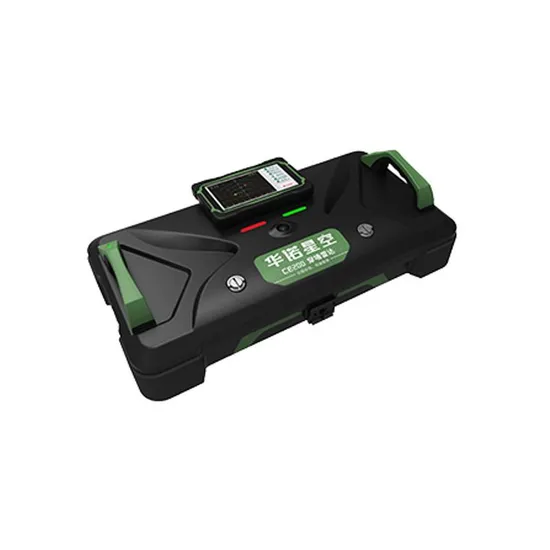

Novasky CE200 Through-Wall Imaging Radar

Product Description

Company Profile

Hunan NovaSky Electronic Technology Co.,Ltd. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search & rescue, high-end security and automotive safety. At present, the company has subsidiaries in Beijing and Shanghai, and R & D centers in Changsha, Chengdu and Xi'an. Novasky is rewarded as national high-tech and "double-soft" certification enterprise. Product Description

CE200 through-wall radar is a kind of MTMR UWB radar with pulse system, which is developed by Novasky to meet the demands of military street battle, forest arrest, police anti-terrorist, hostage rescue and disaster rescue. CE200 has the function of searching targets and two-dimensional positioning. Based on the through-wall detection performance of long distance and high resolution, it can provide industry solutions for customers in national defense, aerospace, aviation, armed police, firefighting, public security, geography and mining fields. Product Parameters

Radar System	UWB(ultra-wide band) radar
Antenna Type	Enhanced medium-coupling UWB antenna
Work Frequency	0.7GHz~2.4GHz
Detection Model	Two-dimensional positioning for both static and moving targets at the same time
Numbers of detected targets	5-10
Penetrated materials	Building walls, apartment buildings
Through-wall detection distance	Wall thickness: 28cm(brick&concrete)
	Detection distance: Static targets:≥25m Moving targets:≥30m
Detection Mode	One-dimensional ranging/two dimensional positioning
Remote-control distance	In open spaces:≥150m
Detection accuracy	Radial resolution:±30cm Tangential resolution:±30cm
Operating system	Android
Radar Host	Handheld terminal (PAD three-proofing industrial grade)
size	620×320×160mm
Weight	5.8kg
Durable work time	≥4h(per battery)

Product Features
2D POSITIONING
Accurately position the two-dimensional coordinates of targets, greatly improve rescue efficiency
MULTI-TARGET DETECTION FUNCTION
Detect 5 to 10 human bodies at the same time
STRONG PENETRATING PERFORMANCE
Penetrate 28cm brick and concrete walls Detect human body targets within 30m
STRONG ADAPTABILITY TO ENVIRONMENT
Work in all time, no matter daytime or night Work in all weather, no matter rain, haze, snow and ice or swirling dust
HIGH REAL-TIME PERFORMANCE
Detect and display the moving targets in real time
HIGH RESOLUTION
With radial resolution ±30cm, tangential resolution ±30cm
SUPER PROFESSIONAL SUPPORT
The unique detection equipment with remote specialist analysis system support, among the similar brand products at home and abroad
