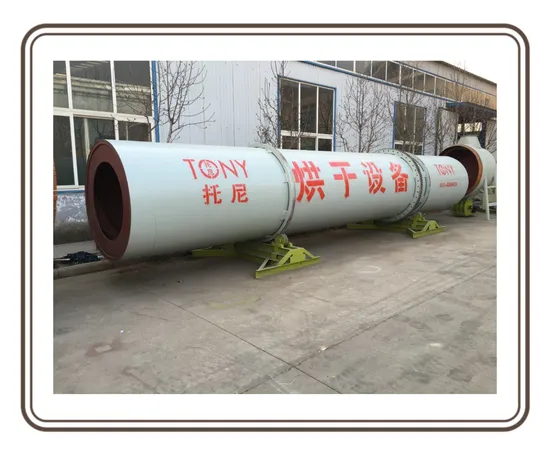

Tony Brand Multifunctional Biomass Rotary Dryer for Biomass Fuel Wood

Product Description

Tony Brand Multifunctional Biomass Rotary Dryer for Biomass Fuel Wood
Product Description
1.Brief Introduction of Rotary Drum Dryer
The rotary dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%.

Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder.
Scope: wet wood chips, wood sawdust etc.
Product Parameters
2.Parameters of Rotary Drum Dryer

Model	Power(KW)	Evaporate (T/h)
THG10-12	4	0.2
THG12-12	5.5	0.3
THG15-12	7.5	0.5
THG15-24	11	0.8
THG18-12	11	0.7
THG18-24	15	1.2
THG20-12	18.5	0.9
THG20-24	22	1.5

Detailed Photos
3.Features for high quality algae rotary drum dryer
1. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
4.Raw Material for high quality algae rotary drum dryer
Sawdust, wood chips,EFB or other biomass raw materials. Rotary dryer is also widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)

5.Structure for high quality algae rotary drum dryer
Rotary dryer is mainly composed of heating device,feeding device, supporting device, cylinder, gears, discharging device and so on. Rotary dryer's main body is a rotary cylinder with a certain inclination, equipped with combustion chamber, exhaust device, dust collector, and feeding device. High-temperature flue gas is used as the drying medium, which enters the dryer under the suction of ventilation device.

6.Working principle for high quality algae rotary drum dryer
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
7.More Detailes for Rotary Drum Dryer
Installation Instructions
8.Customer Case
Packaging & Shipping
9.Packing&Shipping
Company Profile
10.About TONY---
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
Certifications
11.The Certifications of Rotary Drum Dryer
12.Main Products:
1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg per hour to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton per hour to 20 ton per hour.hour to 20 ton per hour.
After Sales Service
13.Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
