Color Glue Lamination Small Toilet Paper Making Machine Price

Product Description

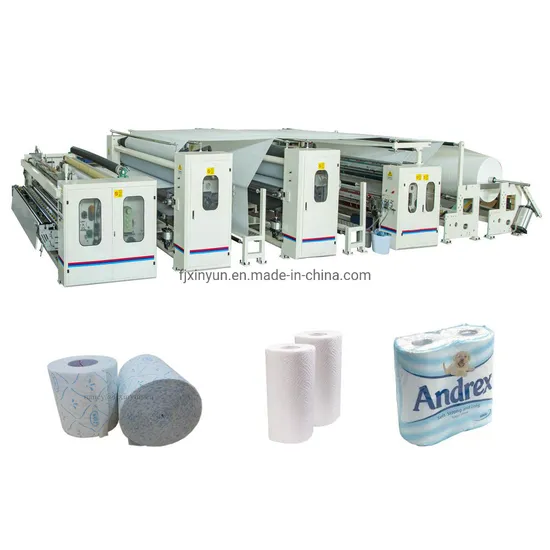

Color Glue Lamination Small Toilet Paper Making Machine Price XY-TQ-C
Description of the equipment:
Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical data:

Machine Model	1092	1575	2000	2200	2400	2600	2800
Width of jumbo roll (mm)	1350	1750	1950	2150	2350	2550	2750
Finished Products Diameter	Φ80~280mm (Tightness can be adjustable)
Finished Products Inner Diameter	Φ38~76 mm
Jumbo roll diameter (mm)	Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter	76.2 mm(other sizes please point out)
Perforation distance (mm)	4 anvil Blades(115mm)(Other size can be specified)
Production speed	100-150 m/minute
Parameter set	Touching-screener Multi-menu Man-machine Interface Operation System
Controller	PLC program
Air pneumatic system	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Power	4kw-15kw (380V 50Hz)
Overall size (L×W×H)	7000*4000*1900 mm
Weight of equipment	About 4.2-7T
Chosen items (Should be ordered separately)
Embossment	Single embossment, Double embossment, Edge embossment
Jumbo roll stander	1-3 plies
Rewinding unit	Non-core unit
Other special request for machine is welcome

Video link: https://youtu.be/abCStZsvMSs
Finished products:
Glue lamination kitchen towel maxi roll toilet paper production line.
Video link: https://youtu.be/WCNp_4geFyg
https://youtu.be/m0G5x2_Aey8
https://youtu.be/be1oG432MUc
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
