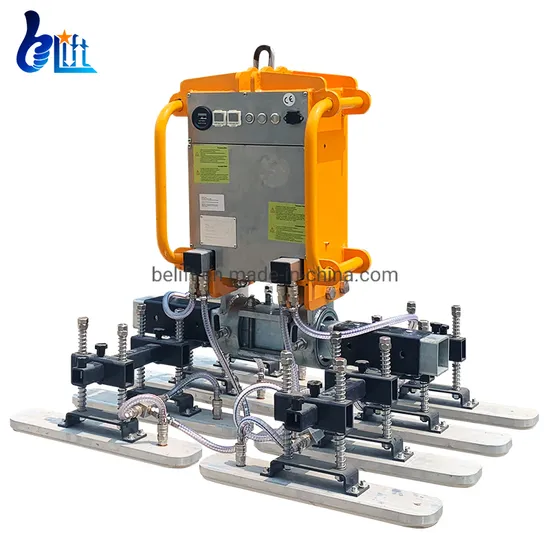

300kg-600kg Electric Suction Cup Sandwich Roof Panels Vacuum Lifter

Product Description

300kg-600kg Portable Electric Small Suction Caps Vaccum lfiter for Sandwich roof penels
(OEM&ODM Service)
Product Description
Belift Brand Small Vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
Features and Advantages:
1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes
3. Imported oil-free vacuum pump, valve
4. Efficient, safe, fast and labor-saving
5. Accumulator and pressure detection ensure safety
6. Suction cup position adjustable and can be closed manually
7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.

Product Parameters

Roof Panel	Lifter Length	Panel Length	Ext Beam Qty	Max Load	Max Load on Traverse	Suction Pad	Pad Size/Load
						Qty
BGL2650	2650	12000	2	300	800	8	110*530/75kg
BGL4450	4450	14000	4	300	500	8	110*530/75kg
BGL6250	6250	16000	6	300	300	8	110*530/75kg
BGL4450L	4450	14000	4	300	800	8	110*530/75kg
BGL6250L	6250	16000	6	300	500	8	110*530/75kg
BGL8050L	8050	18000	8	300	500	8	110*530/75kg
BGL9850L	9850	20000	10	300	500	8	110*530/75kg
BGL8050LD	8050	18000	8	450	500	12	110*530/75kg
BGL9850LD	9850	20000	10	450	500	12	110*530/75kg
BGL1525LDD	15250	24000	16	500	500	16	110*530/75kg
BGL1705LDD	17050	26000	18	500	500	16	110*530/75kg
Wall Panel	Lifter Length	Panel Length	Ext Beam Qty	Max Load	Max Load on Traverse	Suction Pad	Pad Size/Load
						Qty
BGL850V2	850	12000	0	200	800	2	150*490/100kg
BGL850V4	850	12000	0	400	800	4	150*490/100kg
BGL2950C	2950	15000	2	400	800	4	150*490/100kg
BGL4750C	4750	17000	4	400	500	4	150*490/100kg
BGL850H2	850	12000	0	200	800	2	150*490/100kg
BGL850H4	850	12000	0	400	800	4	150*490/100kg
BGL1150HL	1150	13000	0	400	800	4	150*490/100kg
BGL2950HL	2950	15000	2	400	800	4	150*490/100kg

Detailed Photos
Applications
Belift Brand Small Vacuum lifting machine is widely used in glass processing, glass loading and unloading, glass curtain wall, plastic sheet, sandwich panel, composite panel, steel plate, aluminum plate, copper plate, stone and other industries; it is suitable for various workpieces with relatively flat and dense surfaces and relatively regular shapes .
Company Profile
Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world. Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.

After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.
