Rt116je Crawler Mobile Impact Crushing Plant

Product Description

Product Description The Runtianzhike crawler mobile counter crushing station has a compact and integrated design, with a small construction area. The crushing mainframe adopts new manufacturing technology and unique structural design, which results in a higher crushing ratio and stronger crushing capacity. The processed products are cuboid-shaped, with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, making it suitable for complex and varied construction environments.
Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing process.Crushing of all kinds of mine rocks; Highway, railway, water conservancy, electricity, construction and other industriesProduction of sand and stone for construction purposes; All kinds of slag, cave slag, waste asphalt concrete, tailings and waste rock crushing and recycling.

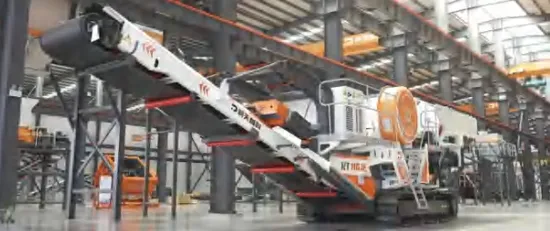

Detailed Photos
Product Parameters

R T 11 6 J E Crawler Mobile Jaw Crushing Plant
Feeding Device	Max.feeding Size 700mm
	Feeding Height 4100mm
	Hopper Volume 9m³
	Feeding Capacity 170-310t/h
Vibrating Feeder	Vibrating Motor Power 2*7.5kW
Crusher	Crusher Mode C116
	Crusher Motor Power 132kW
De-Soiling Conveying Belt	Belt Width B650mm
	Power 4kW
Main Conveying Belt	Belt Width B1000mm
	Power 15kW
ronRemova Device	ron Remover RCYQ-10
	Power 3kW
Power Device	MotorPower 103kW
	Traveling Motor ltaly PMP
Whole Machine	TotalPower 172kW
	Total Weight 50t
	Working Mode External power supply
	Working Dimension 15.8mx4.3mx4.1m
	TransportationDimension 15.8mx3.4mx3.8m
