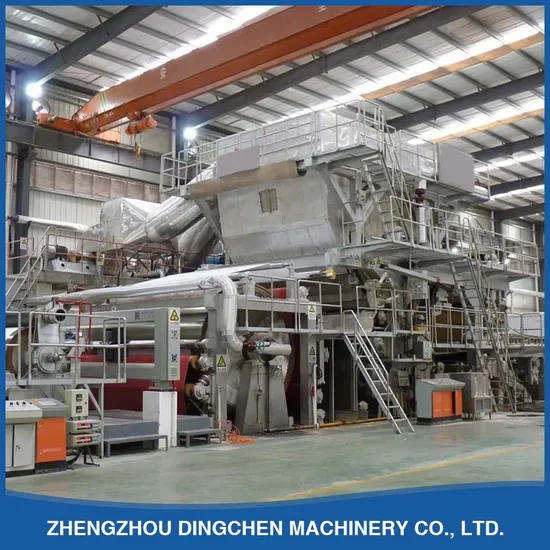

Small Toilet Paper Roll Making Machine Production Line

Product Description

1092mm 2TPD Small Waste Scrap Paper Recycle Machine
I. Technical parameters:
1. Output paper: tissue paper
2. Raw material:waste paper
3. Capacity: 2 tons per day
4. Paper width: 1200mm
5. Paper weight: 15-35 g/m2
6. Working speed: 50-90m/min
7. Rail gauge: 1800mm
8. Drive way: AC frequency converter speed adjusting, section drive.
II. Structure of main part:
1. Cylinder section:stainless steel cylinder mold 1set, couch roll 1set,coated by rubber.
2. Dryer section: alloy dryer can 1set, touch roll 1 set, coated by rubber,dryer can is equipped with double layer exhaust hood.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
Paper making equipment and pulping process flows
Ш All Equipments:

No.		Item	Qty(set)
1		1092mm tissue paper making machine	1
2		Dryer exhaust hood	1
3		Axial-flow ventilator	1
4		vacuum pump	1
5		Suction box	2
6		Air pump	1
7		Air tank	1
8		Frequency conversion controlling cabinet	1
9		1092mm automatic rewinding machine	1
10		tissue paper cutting machine	1
11		Plastic bag sealing machine	1
12		Boiler(burning wood)	1
13	Pulp making section		1 line

The process flows of toilet paper: Waste paper or wood pulp--high concentration hydra-pulper--high frequency vibrating screen--pulp pump--hydra-screen -- bleacher -- propeller-- pulp pump -- double disc pulp refiner-- pulp pump-- centrifugal screen -- pulp pump -- sand remover-- 1092 type paper machine -- full-automatic rewinding &perforating machine -- band saw paper cutter -- sealing machine -- marketing
If you are interested in this project,please contact with Mr.Pank
