Waste Plastic Bags Recycling Machines for Jumbo Bags, Films

Product Description

waste plastic bags recycling machines for jumbo bags, films
It is widely used in recycling plastic films and plastic bags, such as LLDPE agriculture film, LDPE/LLDPE films, PE,PP bags, PP woven bags, jumbo bags and so on. It include plastic crushing and washing line, squeezing pelletizer and plastic granulating line. It will make granules directly from waste PP, PE plastic material. With proper design, this line can also recycle plastic basket, plastic bucket, plastic pallet, jerry cans and so on.

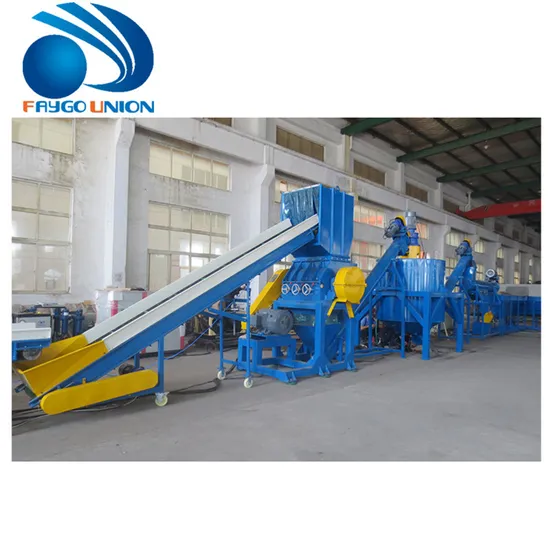

The complete process of this waste plastic bag recycling machine is belt conveyer - wet crusher - screw loader - friction washer - float washer - squeezing pelletizer - pelletizing line. The output of this plastic recycling machine could be 300~800kg/h. For dirty material, the clients will need more washing machine for cleaning the material. According to clients workshop, this waste plastic recycling line could be "L" or "U" shape to save space.
If the clients also want to recycle righd PP PE material, such as PP PE pipes, basket, pallet, jerrycans, we can also make some special design for this waste plastic film/bag recycling machine, so that the clients can recycle more waste plastics.
detail specification

itme/model	FGR300	FGR500	FGR800	remark
belt conveyer	1.1kw	1.1kw	1.5kw	washing and squeeizing part
crusher	PC800, 37kw	PC1000, 45kw	PC1200, 55kw
screw loader	3kw	3kw	4kw
friction washer	7.5kw	7.5kw	11kw
float washer	2.2kw	3kw	4kw
squeezing pelletizer	55kw	75kw	110kw
air cooling system	4kw	5.5kw	7.5kw
conveyer	1.1kw	1.1kw	1.5kw	pelletizing line
Single screw extruder	90KW	132KW	160KW
screen changer and die	1.5KW	2.2KW	3KW
pelletizing system	1.1KW	1.5KW	2.2KW

With so many years of experence for plastic recycling, we developed high efficient squeezing pelletizing system for the plastic film/bag crushing and washing line. This system can replace the centrifuge dewatering machine, pipeline drying system, agglomerator. People can save a lot of electricity and space with this squeezing pelletizer. It can get more dry material from washed PP, PE film/bag scraps. Besides, it can also easy to achieve high output like 500~800kg/h. With this squeezing pelletizing system, the clients will get the rigid PP PE scraps from the washing line and it is much more easy for pelletizing line.
After squeezing pelletzer, the rigid PP, PE flakes will be very hot. To cool it, the air conveying pipe will be double layer, which will put cooling water inside. We will suggest cooling conveyer after this squeezing pelletizing machine. The rigid flakes can put into simple pelletizing line to make good granules.
For more details, welcome to send you requests to our company, and we will give you reply in time.
