Wood Feed Pellet Mill Pellet Production Line Granulating Machine

Product Description

Product Description

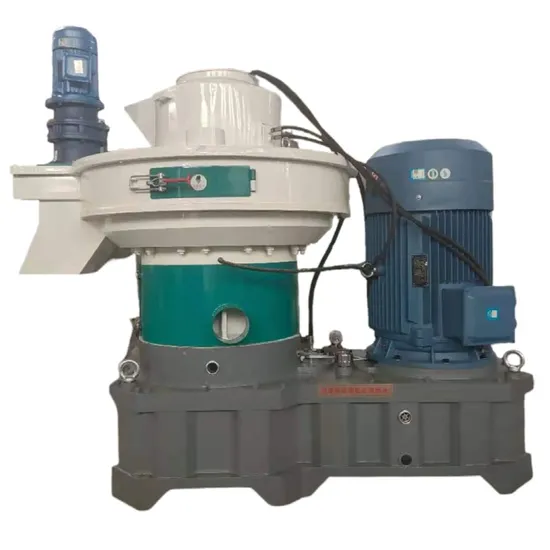

★ Vertical ring die pellet machine is a new biomass fuel production machinery by using crushed sawdust and bran from eucalyptus, pine, birch, poplar,fruit and agricultural straw, bamboo. Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die pellet machine.★Raw material: wood logs, waste wood and straws, such as woodchips(palm, pine / white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material,etc.
Material size:2-4mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)Moisture: Generally, 10-15% is best for producing good quality wood pellet.
Product Parameters

Model	Power(kw)	Diameter(mm)	Capacity(T/H)	Measurement(mm)	Weight(T)
FX-560B	110+1.5+1.5+0.55	6--12	1.5--2	1650*1000*1800	4.5
FX-580	132+1.5+2.2+0.37+0.55	6--12	1.7--2.3	1650*1200*1800	5.2
FX-700A	132+1.5+1.5+0.37+0.55	6--12	2--2.5	2300*1500*1900	5.8
FX-700B	160+2.2+0.55+2.2+0.37	6--12	2.5--3.5	2300*1500*1900	7.2
FX-800	220+3+0.55+2.2+0.55	6--12	3--4	2500*1800*2300	12.6

Main Features
1.Vertical ring die pellet machine is an ideal dense compression molding equipment; 2.Vertical feeding, directly in pelleting chamber 3.Die is static, rollers rotate; materials are evenly distributed around pelletizing room because of centrifugal force, no block; 4.Double-layer die. Two layer both can bee used for reduce the cost. High efficiency and save energy; 5.Ring die and vertical structure are good for cooling the pelletizing room; 6.Independent and frequent conversion discharge device can ensure the for mation rate of pellet.
Detailed Photos


Production Line 3D Design
Packaging & Shipping
