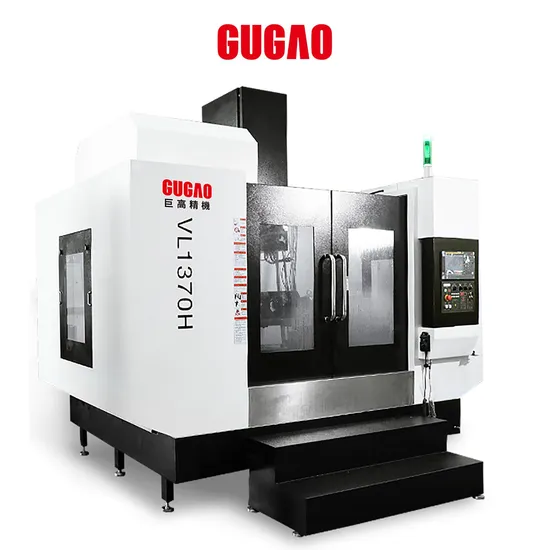

Vl1370h CNC Machining Centers Precision Speed and Factory Direct Prices Vmc 3/4/5 Axis Lathe Cutting Machine Tools

Product Description

VL1370H Production Description
Whole machine: The machine tool adopts a column fixed and cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large flow fully enclosed protection has beautiful appearance and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle taper hole is BT40 specification, and has a central blowing function.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance.
Drive: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides. The machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Paremeters

Name		Unit	Parameter
Travel	Three axis travel	mm	1300/700/550
	Distance from spindle end face to worktable center	mm	160~710
Worktable	Worktable Size(L×W)	mm	1400×700
	Maximum load-bearing capacity of worktable	kg	1000
	T-shaped slot (width × spacing × quantity)	mm	18×150×5
Spindle	Spindle diameter Spindle bore taper		∅155/BT50
	Max. spindle speed	rpm	8000
	Motor power	kW	11/18.5
Feed Speed	Three axis fast moving speed(X/Y/Z)	m/min	30/30/12
	Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24
	Max tool diameter/length/weight		∅112mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	112/200
	Tool exchange time (T-T)	s	3
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.010
	(X/Y/Z) repositioning accuracy	mm	0.006
Others	Air source/pressure		280L/min 6~8 Bar
	Total electrical capacity	KVA	35
	Water Tank Volume	L	420
	(X×Y×Z)Machine size (X×Y×Z)	mm	3500×3600×3250
	Estimated weight	kg	8300
