New design Wood Peeling Machine /Wood Log Debarker/tree debarking machine

Product Description

Product Description

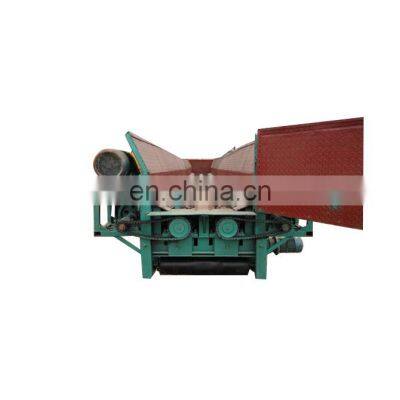

Tree debarking machine /Tree peeling machine
Brief Introduction
1. The machine use open silo, from one side feeds materials, from the other side overcome .
the existing power roller peeling machine feed.
2. Due to the impact of gear teeth on wood, not only wood in the casing for circulating movement, and turn around their own, so stripping efficiency is high, species of difficult stripping tree such as eucalyptus wood and poplar have good peeled off net rate.
3. Strong adaptability of the machine on wood, for different tree species, diameters, lengths and shapes of wood stripping, because wood does rotary movement and irregular beats, the concave part of the bending wood section can also good contact with the stripping teeth.
4. Huge cabinet is fixed, so little energy consumption, low fault rate, small amount of maintenance, lower vibration and noise than roller peeling machine, the machine can produce landing, even without installed base, easy to operate.
5. This machine with the electric engine and wheels, can move and work in the forest, which is the ideal machine for forest log debarking work, for this machine suitable for peeling all kind of wood log.
Main Parameters

Model	JX-8000	JX-10000
Motor	11kw, 3 phases, 380v.50 hz	15kw,3 phases,380v,50hz
Capacity	6-8 t/h	10-12 t/h
Barking rate	> 90%	>95 %
Log length	3-4 m	5-6 m
Log loss rate	< 2%	< 2%
Log diameter	No limitation	No limitation
Diamension	8*1.4*1.7 m	12*1.5*1.7 m
