Basic Info.
Column number
Four Column
Automatic Grade
Automatic
Working Speed
10-32 Cycles/Min
Max. Forming Area
480X320mm
Transport Package
Wooden Pallet
Production Capacity
10000-15000PCS/Hr
Product Description
Details
Unwinding Station
Heating Station
Forming Station
Punching Station
Stacking Robot
Feature

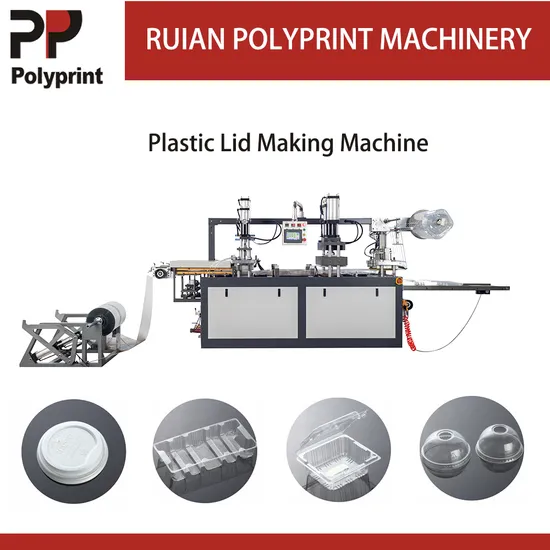

1. PPBG-500 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
2. With easy operation, calm running, convenient maintenance and stable function.
3. It can produce PVC, PS, PET etc. All kinds of covers.
Technical Parameters
| 1 | Working Speed | 10-32 Cycles/min |
| 2 | Stroke Range | 30-340mm |
| 3 | Max. Forming Depth | 50mm |
| 4 | Max. Forming Area | 480×320mm |
| 5 | Voltage | 380V/50Hz (Three Phase, Four Wires) |
| 6 | Main Motor Power | 3kw |
| 7 | Heating Power | 12kw |
| 8 | Servo Power | 0.75kW |
| 9 | Air Pressure | 0.5-0.7MPa |
| 8 | Air Consumption | ≥ 0.22 m3/h |
| 9 | Cooling Water Consumption | Normal Tap Water Recycle Cooling |
| 10 | Noise | 75Db |
| 11 | Machine Dimension | 2760×950×1720mm |
| 12 | Weight | 1900kg |
Our Services
1. Warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60days.
Packaging Shipping
Company Information
Polyprint Machinery is one of the first company specialized in manufacturing sheet extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine and cup packing machine since 2006.
