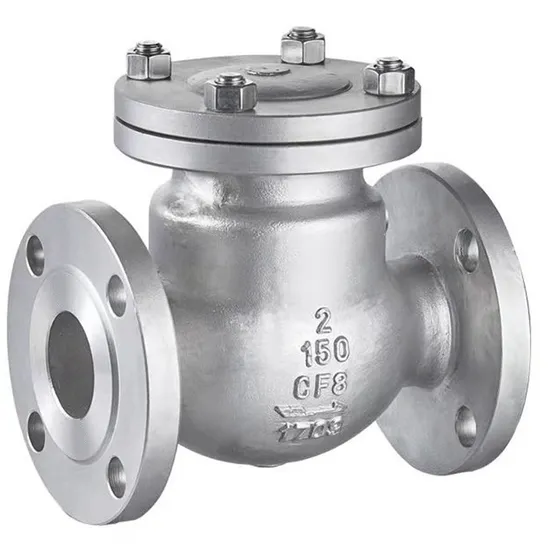

Cast Steel Swing Check Valve ANSI Class150/300/600/900/1500
| Negotiable | 10 Sets (MOQ) |
Basic Info.
Model NO.
SCAXRF-SW
Material
Cast Steel
Connection Form
Flange
Structure
Swing
Pressure
High Temperature
Function
Ddcv Double Lobe
Sealing Form
Metal Seal
Flow Direction
Reversing
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage
Transport Package
Export Wooden Case
Specification
DN40~DN900
Trademark
CIPHY
Origin
China
HS Code
8481300000
Production Capacity
50000PCS/Year
Product Description
CARBON STEEL OR STAINLESS STEELSWING CHECK VALVE BOLTED CAP DESIGN
DESIGN DESCRIPTION: Manufacture: ANSI B16.34 Or BS1560 Design: API6D Or BS1868; Face To Face: B16.10 Or BS 2080; End To End: B16.10 Or BS 2080; Flange: ANSI B16.5 Or BS 1560; End: ANST B16.25; Test: API598 Or BS 6755 Part 1; Bolted Cap; Swing Type;Fully Guider; Integral Seat; No Out Pin For Resistent Leak;Horizontal Or Vertical Service Material and Working Temp.: ASTM A216-WCB: -29ºC-420ºC(60ºF-822ºF) STAINLESS STEEL: -40ºC-550ºC(15ºF-1047ºF)
PARTS AND MATERIAL:
| PARTS NAME | MATERIALS |
| BODY | ASTM A216-WCB/A351-CF8/CF8M/CF3/CF3M |
| CAP | ASTM A216-WCB/A351-CF8/CF8M/CF3/CF3M |
| GASKET | PTFE/R-PTFE/GRAPHITE |
| DISC | ASTM A216-WCB+13CR/STL/A351-CF8/CF8M/CF3/CF3M |
| SEAT | A105+13CR/STL/SS304/SS316/SS304L/SS316L |
| SWING ARM | ASTM A216-WCB/A351-CF8/CF8M/CF3/CF3M |
| PIN | ASTM A182-F6a/F304/F316/F304L/F316L |
| BOLT & NUT | A194 2H+A193 B7/ A1938+B8/A193 8M+A193 B8M |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. | |
DIMENSIONS LIST(UNIT:MM):
| DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 |
| NPS | 2" | 2.5" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 28" | 30" | 36" |
| CLASS150 | ||||||||||||||||
| d | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 438 | 489 | 591 | 684 | 735 | 874 |
| L(RF /BW) | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 699 | 787 | 864 | 978 | 978 | 1295 | 1448 | 1524 | 1956 |
| LJ | 216 | 229 | 254 | 305 | 368 | 508 | 635 | 711 | 800 | 876 | 991 | 991 | 1308 | |||
| H | 152 | 165 | 175 | 204 | 293 | 353 | 390 | 432 | 475 | 525 | 582 | 627 | 883 | 940 | 980 | 1377 |
| Wt RF (kg) BW | 10 /15 | 12 /20 | 25 /17 | 39 /29 | 69 /57 | 127 /96 | 200 /143 | 265 /227 | 415 /294 | 517 /468 | 632 /552 | 829 /755 | 1427 /831 | 1950 /1838 | 2540 /2261 | 3380 /3310 |
| CLASS300 | ||||||||||||||||
| d | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 438 | 489 | 591 | 692 | 743 | 876 |
| L(RF /BW) | 267 | 292 | 318 | 256 | 445 | 533 | 622 | 711 | 838 | 864 | 978 | 1016 | 1346 | 1499 | 1594 | 2083 |
| LJ | 283 | 308 | 333 | 371 | 460 | 549 | 638 | 727 | 854 | 879 | 994 | 1035 | 1368 | 1524 | 1619 | |
| H | 176 | 185 | 216 | 259 | 317 | 380 | 434 | 511 | 561 | 596 | 675 | 730 | 860 | 1163 | 1270 | 1510 |
| Wt RF (kg) BW | 21 /16 | 30 /22 | 39 /30 | 60 /53 | 127 /101 | 193 /157 | 309 /232 | 445 /414 | 612 /455 | 778 /766 | 958 /774 | 1306 /960 | 2200 /1792 | 3680 /2780 | 3880 /3380 | 6290 /5640 |
| CLASS600 | ||||||||||||||||
| d | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 438 | 489 | 591 | 692 | 743 | 876 |
| L(RF /BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1549 | 1651 | 2082 |
| LJ | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 | 1562 | 1664 | 2099 |
| H | 184 | 210 | 232 | 263 | 374 | 426 | 517 | 569 | 622 | 680 | 752 | 975 | 1111 | 1192 | 1324 | 1542 |
| Wt RF (kg) BW | 28 /21 | 43 /35 | 52 /43 | 98 /64 | 199 /145 | 349 /256 | 594 /375 | 814 /589 | 1045 /694 | 1473 /932 | 1900 /1279 | 2375 /1702 | 3155 /2497 | 4600 /3900 | 5500 /4700 | 8100 /7200 |
| CLASS900 | ||||||||||||||||
| d | 51 | 76 | 102 | 152 | 203 | 254 | 305 | 322 | 373 | 423 | 471 | 522 | ||||
| L(RF /BW) | 368 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | 1753 | 1854 | 2156 | |
| LJ | 371 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1333 | 1568 | 1775 | 1876 | ||
| H | 296 | 300 | 327 | 441 | 502 | 664 | 775 | 782 | 838 | 839 | 932 | 984 | 1372 | 1521 | 1821 | |
| Wt RF (kg) BW | 70 /50 | 110 /77 | 150 /113 | 305 /230 | 510 /387 | 810 /632 | 1120 /901 | 1380 /1139 | 1900 /1613 | 3000 /2650 | 4000 /3550 | 5200 /4650 | 7550 /6420 | 8850 /7510 | 12750 /10780 | |
| CLASS1500 | ||||||||||||||||
| d | 51 | 76 | 102 | 144 | 192 | 239 | 287 | 315 | 360 | |||||||
| L(RF /BW) | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 | 2222 | 2362 | ||
| LJ | 371 | 422 | 473 | 549 | 711 | 842 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | ||||
| H | 296 | 341 | 412 | 511 | 680 | 756 | 857 | 950 | 1020 | 1147 | 1284 | 1539 | 2049 | 2304 | ||
| Wt RF (kg) BW | 70 /50 | 150 /115 | 245 /190 | 550 /452 | 1010 /750 | 1476 /1012 | 2280 /1780 | 3060 /2290 | 4500 /3500 | 6100 /5200 | 8000 /7500 | 9800 /8400 | 13400 /10200 | 15200 /11100 | ||
