Affordable 20mm Drill Machine, Base Size 460*270mm, Voltage 110-230V, Swing 325mm

Product Description

Product Description

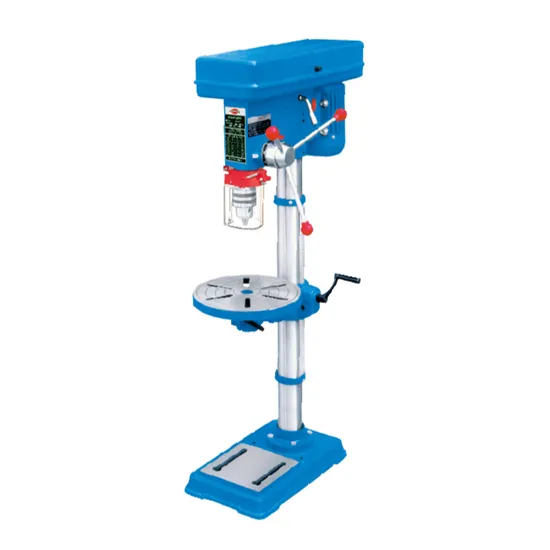

Product Name: 20mm Floor Drill Press/Drill Machine With 750W Power HY5220A
Manufacturer: Shanghai Hystrong Industrial Co., Ltd.
Description: Introducing the state-of-the-art and cost-effective 20mm Drill Press Machine, model HY5220A. This versatile hobbyist drill machine excels in tasks such as drilling, tapping, boring, and reaming. Manufactured in China to meet stringent Korean quality standards, it features a belt drive mechanism that ensures reduced noise levels, an adjustable worktable for perpendicular accuracy, a robust high column, heavy-duty tapered roller bearing spindle, secure spindle lock, and adjustable gibs for superior table control.
Technical Data

Model	HY5220A
Drilling Capacity	20 mm
Swing	360 mm
Spindle Taper	MT2
Spindle Travel	85 mm
Spindle Speed Step	16 Steps
Spindle Speed	180 - 2,770 / 220 - 3,320 rpm
Maximumn Distance from Spindle Axis to Surface of Column	180 mm
Maximumn Distance from Spindle End to Surface of Worktable	620 mm
Maximumn Distance from Spindle End to Surface of Base	810 mm
Column Diameter	72 mm
Height	1,200 mm
Worktable Size	290 x 290 mm
Base Size	460 x 270 mm
Motor Power	450 / 550 / 750 w
Net / Gross Wieght	58 / 60 kg
Packing Size	1,000 x 500 x 300 mm

Accessories
Packaging & Shipping

Package	1 set/carton
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	180 sets/20'GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment

Company Information
Certifications
FAQ
Product Description Welcome to Shanghai Hystrong Industrial Co., Ltd. Here are some key details about our products:
Payment Terms: Our payment terms are 30% T/T in advance and 70% T/T before shipment. These terms are negotiable to meet your needs. Delivery Time: Generally, delivery takes 20-40 days for one machine. If available in stock, shipment can be arranged immediately upon receipt of payment. Factory Location: Our factory is located in the picturesque Yancheng, Jiangsu Province. We warmly invite you to visit and discover firsthand how to utilize our machinery. CE Certification: Yes, our machines are CE certified, guaranteeing top-notch quality and safety. OEM Orders: We gladly accept OEM orders. Your logo can be printed on the machines, and packaging can be tailored to your specifications. For more information, please do not hesitate to contact us at Shanghai Hystrong Industrial Co., Ltd.
