Mini Spot Laser Welding Machine Fiber Laser Soldering Machine Price Mould Repair Laser Welder

Product Description

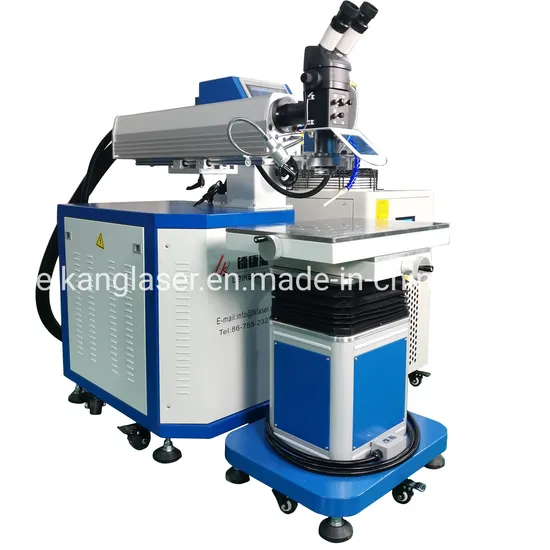

Mini Spot Laser Welding Machine Fiber Laser soldering machine price Mould repair laser welder
Model Introduction
Herolaser produced the series of laser welding machine which is specialized for the mould industry, this model dedicated to replacing the traditional argon welder, repairing precision molds. All the key components of this machine are imported. The software operating interface use large LCD screen and display Chinese or English interface, it is simple and easy to use for operator. Multiple presetting operating mode, also can program by users, forever memory function, applicable to a variety of materials.
Model Features
1,Heat affected zone is small, no deformation for precision molds.
2,Welding depth is large, welding firm. Sufficient fusion, no repair traces. No dimple phenomena at combining position of projection parts and bulge part of molten pool soluble material.
3,Low oxidation rate, the color of the processing parts is intact.
4,No stomata or sand hole disappeared after welding.
5,The welding parts can be processed, especially suitable for polishing requirements of the mould repair.
6,The processing parts can reach to 50 to 60 rockwell hardness.
Applications display
Repairing and welding for crack, corner breakage, touched edge and damaged sealing side of mould, precision injection molding, die-casting, stamping, stainless steel and other horniness.
High accuracy, laser spot diameter is only 0.2mm ~ 1.5mm. Little heat effect area, no deformation of the processing parts;no effect for etch after welding
1)The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
2)Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant with 8-10 years service life. The life of xenon lamp is more than 8 million times.
3) Most advanced light shielding system eliminates the irritation to eyes by laser during working.
4) Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours.
5) Human-based design accords with ergonomics, avoiding fatigue after long time working.
6) High speed, high efficiency, deep enough, slightly deformation, small heat effect area, high welding quality, pollution free, environmental friendly.
7)The size of light spot can be adjusted accordingly and automatically.
Technical Parameters

Model	LK-MW200	LK-MW300
Max.Laser Power	200W	300W
Laser type	YAG	YAG
Laser Wavelength	1064um	1064um
Pulse Energy	80J	120J
Pulse Frequency	0-50HZ	0-50HZ
Laser Welding Depth	2mm	2.5mm
Size of Welding Spot	0.2-0.6mm	0.2-1.0mm
Adjustment Range Of Light Spot	1.8mm	1.8mm
Max.Bearing Of Standard Work Bench	100kg	100kg
Sighting Positioning System	Microscope /CCD	Microscope /CCD
Cooling System	Water cooling	Water cooling
Max. Output Power	200W	300W
Inter Power Of Standard	<5kw	5kw
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A
Dimensions	1100*600*1250mm	1100*600*1250mm

Sample
Packing &Shipping 1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
Our Service 1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
