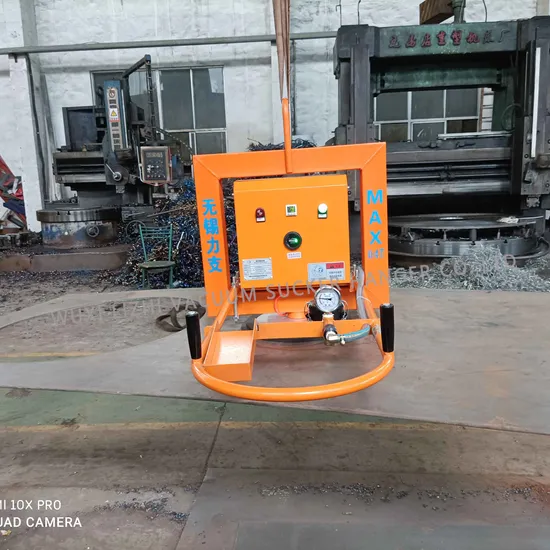

Durable Suction Cup Lifter with 400kg Capacity for Steel Plates

Product Description

Our Durable Suction Cup Lifter with an impressive 400kg Capacity is designed to effortlessly manage steel plates of diverse characteristics, regardless of oil stains or rust, and is adaptable to various sizes. It features a manually crafted operating handle for simplicity and safety, enhanced by local galvanizing. The robust design is adaptable with main beams and crossbeams of varying lengths to suit different workpiece dimensions.
Experience the unparalleled versatility of our vacuum lifting equipment, which is ingeniously modularized for maximum flexibility. The operating handle, load, and main beam, along with the vacuum suction cup, are all customizable to meet your specific working conditions. The vacuum generating device efficiently delivers the necessary suction, seamlessly transferring it to the workpiece via the vacuum suction cup. For unmatched safety, the aluminum load-bearing main beam also serves as a vacuum accumulator.
This innovative suction hoist can be seamlessly integrated with your existing on-site crane or enhanced with an optional simple column electric hoist. Tailor your setup with main beams and crossbeams of varying lengths, perfectly aligned with the dimensions of your different workpieces for optimal performance.
Product Specifications

Model	KKP-200-1-E	KKP-400-1-E	KKP-500-6-E	KKP-800-8-E	KKP-1000-10-E	KKP-1500-8-E	KKP-2000-10-E	KKP-2500-12-E
Board Length	L(800-6000)mm*W(500-1500)mm
Suction Capacity	200kg	400kg	500kg	800kg	1000kg	1500kg	2000kg	2500kg
Number of Suction	1	1	6	8	10	8	10	12
Suction cup size	Φ230mm	Φ230mm	Φ230mm	Φ230mm	Φ230mm	Φ300mm	Φ300mm	Φ300mm
Control	Modemanual/Remote
Control voltage	DC12	DC12	DC12	DC12	DC12	DC12	DC12	DC12

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1.Are you a factory or trading company? We are a distinguished manufacturer, expertly crafting a wide range of products including vacuum suction cups, vacuum suction cranes, column-type cantilever cranes, robotic arms, palletizing robots, vacuum fixtures, vacuum suction cup end pickers, vacuum component system equipment, and comprehensive vacuum handling system integration solutions.
Q2.What size of board can the charging suction crane lift? Wuxi Lizhi Vacuum Suction Cup Lifting Appliance Co., Ltd. showcases an impressive array of suction cranes, tailored to varying capacities: 0.5t, 0.8t, 1t, 1.5t, 2t, 3t, 5t, 10t, and 20t.
Q3. Can we customize according to the customer's product?
Absolutely! We offer a wide variety of types and specifications. If you don't find the perfect match, we are equipped to customize solutions that align seamlessly with your specific product needs.
Q4. What fields can vacuum suction cranes be used in?
Our versatile vacuum suction cranes find applications across a broad spectrum of industries, including home appliances, 3C electronics, building materials, food packaging, medical equipment, automotive parts, metallurgy, daily chemical products, rubber and plastic, sanitary ware, textiles, new energy, warehousing, logistics, and many more dynamic fields.
Q5. Does the equipment need to be assembled?
No assembly is required. Our equipment is meticulously pre-debugged at the factory, allowing you to effortlessly lift any plate directly with the crane hook.
Q6. Is the device easy to operate and convenient?
The rechargeable suction crane by Wuxi Lizhi stands as an industry leader in sheet metal handling, significantly boosting work efficiency and safety. Its user-friendly design ensures exceptional convenience and ease of use.
Q7. How can I get the price? We typically provide a quote within 24 hours of receiving your inquiry.
If you require an expedited response, please email us or reach out through alternate contact methods to ensure prompt pricing.
quote.
Q8. Which is better, an unpowered suction crane or a rechargeable suction crane?
The unpowered suction crane by Wuxi Lizhi excels in whole board handling and efficient loading/unloading. In contrast, the rechargeable suction crane offers the versatility to handle both whole boards and parts, making it particularly advantageous in the sheet metal industry.
Q9. Does an unpowered suction crane require a vacuum pump?
No, the Wuxi Lizhi vacuum suction crane ingeniously utilizes an internal circulation chamber to generate the necessary vacuum, eliminating the need for an external vacuum pump.
Q10. What are the safety devices of the suction crane?
