Tungsten Carbide Serrations Grippers and Inserts for Use in Clamping Arms

Product Description

Feature:

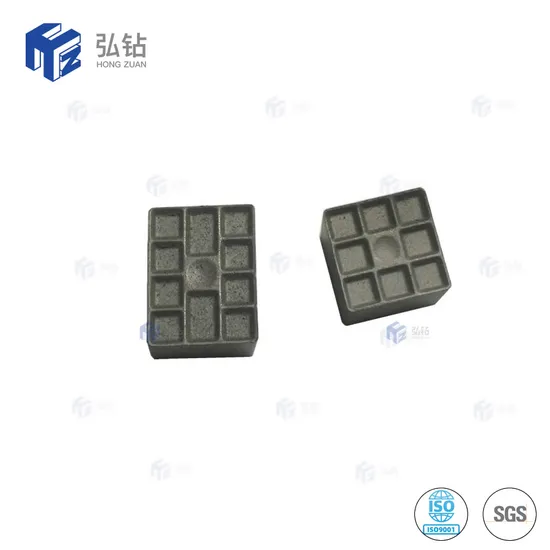

Tungsten Jaw Grippers
Tungsten Carbide Chuck Jaws/ Gripper Pads/Inserts the gripper inserts are welded into the steel jaws as chuck jaw for gripping drill rods used in diamond drilling industry.
Tungsten Carbide gripper inserts are used in different ways, such as diamond drilling, coal mining, stone mining and oil mining.
Carbide Inserts for Hydraulic and Mechanical chucks
Tungsten Carbide Gripper Insert Gripper Teeth
Carbide gripper inserts are our featured products for worldwide markets.
Steady performance, long service time and used in different ways for mining field.
Like coal mining, stone mining and oil mining. Size:
35x6x4, 28x6x5.5, 22x10x6.3,25x3x5,35x6x4,30x7x7,30x6x6,28x8x7,15x6.8x7,22x10x6 etc..
We can accept Customized, You just provide us drawings.
Tungsten carbide gripper Inserts Types. A wide range of high wear resistant tungsten carbide inserts was provided with many teeth patterns and shapes to suit chucks from manufacturer all over the world. a. With one end round b. Straight at two ends c. Round at two ends We have substantial custom manufacturing capacity as well. Please contact us if you need a size not shown.
Product Paramenters

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (Mpa)	Application Recommended
YG4C	15.00	89.5	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	15.8	89.5	1700	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.7	88.5	2300	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG13C	14.3	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.0	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.

Tungsten carbide jaws application
Company Profile
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in
the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized
in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications.
Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc . We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,
Finished Products and Packaging to ensure high quality products output.
We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.
Product packaging
FAQQ1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality? All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
