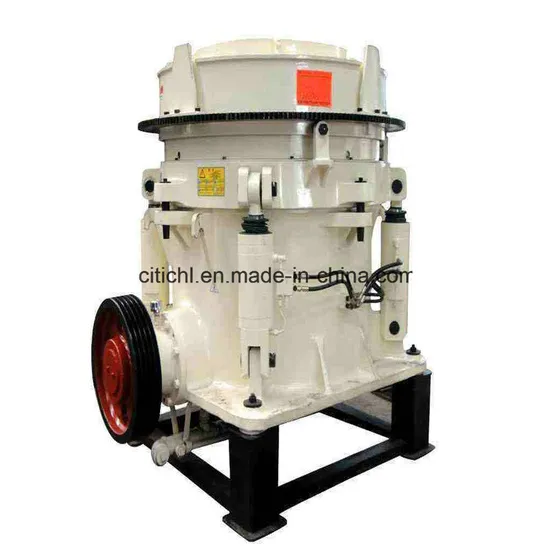

Limestone/Stone/Iron Ore/Copper/Hydraulic Cylinder Cone Crusher
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HCC51B
Drive
Hydraulic
Crushing Style
Extruding
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Outer Surface Process
Certification
CE, ISO, SONCAP, CCC
Condition
New
Color
as Requirement
Name
Cone Crusher
Dimensions
2983X2354X3156mm
Processing Capacity
112-189 T/H
Motor Power
160kw
Max Feed Size
115mm
Transport Package
in Container
Specification
25.9t
Trademark
CITICTIC
Origin
China
HS Code
8474209000
Production Capacity
200 Sets Per Year
Product Description
Limestone/Stone/Iron Ore/Copper/Hydraulic Cylinder Cone CrusherCone crusher is suitable for crushing ore and rock which is above 300MPa hardness. It has advantages of reliable structure, high production efficiency, easy to modulate, high cost- effective. Its spring insurance system is the protecting gear for overload; this system can make foreign matter pass the crushing cavity, but not damage the machine, using dry and water two sealing type, it can segregate rock powder and lubricant, to ensure reliable operation. The crushing cavity type is decide by ore's purpose, normal type is used for medium crushing, medium type is used for fine crushing, short type is used for fine crushing.
Working principles of cone crusher:
The cone crusher for sale is mainly composed of frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl pedestal part, transmission device and so on, and the auxiliary device includes electrical system, diluted oil lubrication station and hydraulic cleaning chamber system. When Cone crusher works, the motor drives the drive shaft through the pulley and V-belt .The drive shaft and a pair of bevel gear make the eccentric sleeve rotating and this makes the cone axis swing, so sometimes the crushing wall is near the rolling mortar wall, but sometimes they are far away from each other. Stones in the crushing cavity are extruded, impacted, and boned continuously, finally they are crushed.
Technical parameters:
| Model | Cavity Type | Max. feeding size(mm) | Adjustable range of discharge opening(mm) | Capacity (t/h) | Motor power (Kw) | Weight (t) | Overall dimension (mm) |
| HCC36B | Fine | 85 | 9-22 | 46-94 | 75 | 14.2 | 2656x1746x2241 |
| Coarse | 150 | 61-168 | 61-168 | ||||
| Extra Coarse | 152 | 122-168 | 122-168 | ||||
| HCC36D | Fine | 35 | 28-93 | 28-93 | 75 | 14.7 | 2656x1746x2241 |
| Medium | 65 | 37-103 | 37-103 | ||||
| Coarse | 85 | 61-133 | 61-133 | ||||
| HCC51B | Fine | 115 | 112-189 | 112-189 | 160 | 25.9 | 2983x2354x3156 |
| Medium | 178 | 136-261 | 136-261 | ||||
| Coarse | 205 | 177-359 | 177-359 | ||||
| Extra Coarse | 220 | 243-369 | 243-369 | ||||
| HCC51D | Fine | 54 | 37-168 | 37-68 | 160 | 26.4 | 2983x2354x3156 |
| Medium | 76 | 84-168 | 84-168 | ||||
| Coarse | 89 | 112-234 | 112-234 | ||||
| Extra Coarse | 113 | 215-243 | 215-243 | ||||
| HCC66B | Fine | 178 | 186-337 | 186-337 | 220 | 50 | 3911x2870x3771 |
| Medium | 205 | 266-430 | 266-430 | ||||
| Coarse | 228 | 308-654 | 308-654 | ||||
| Extra Coarse | 313 | 444-664 | 444-664 | ||||
| HCC66D | Fine | 60 | 93-215 | 93-215 | 220 | 51 | 3911x2870x3771 |
| Medium | 76 | 140-289 | 140-289 | ||||
| Coarse | 113 | 196-346 | 196-346 | ||||
| Extra Coarse | 125 | 261-346 | 261-346 | ||||
| HCC84B | Fine | 236 | 392-748 | 392-748 | 315 | 88 | 4613x3302x4638 |
| Medium | 284 | 626-1028 | 626-1028 | ||||
| Coarse | 314 | 813-1308 | 813-1308 | ||||
| Extra Coarse | 391 | 906-1402 | 906-1402 | ||||
| HCC84D | Fine | 89 | 196-420 | 196-420 | 315 | 90 | 4613x3302x4638 |
| Medium | 113 | 365-523 | 365-523 | ||||
| Coarse | 151 | 468-617 | 468-617 | ||||
| Extra Coarse | 172 | 523-673 | 523-673 |
