New Updated Diesel Engine Electric Concrete Pump

Product Description

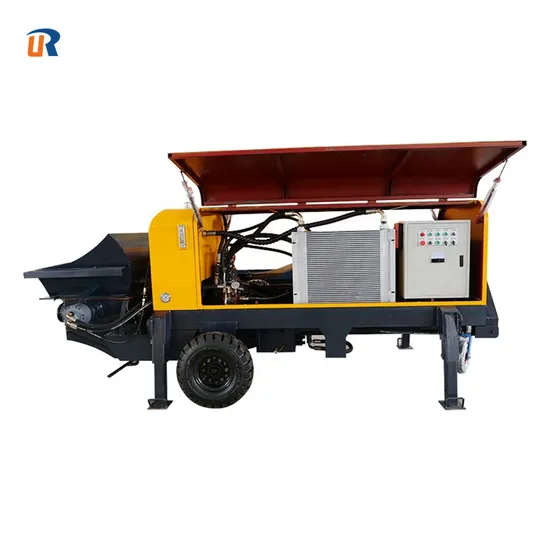

new updated Diesel Engine Electric Concrete Pump Electrical Small Concrete pump machine, 15-20m3/h capacity, pumping height 70m. Equipped 37kw electrical engine, more stronger power than old small pump, improved the continues pumping performance.New design, good Choice!
Product Description

No.	ITEM	UNIT	UR-CP20M	UR-CP30M	UR-CP40M	UR-CP50M
1	Processing Aggregate sizes	mm	≤30	≤30	≤20	≤50
2	Capacity	m³/h	8-12	15-20	20-25	30-40
3	Vertical transport distance	m	25mts	70mts	150mts	100mts
4	Horizontal transport distance	m	80mts	130mts	400mts	200mts
5	Hopper height	mm	1100	1150	1150	1200
6	Working pressure	mpa	10	10	12	12
7	Motor power	kw	30	37	45	55
8	Dimension	mm	3100x1300x1450	4200x1500x1600	4200x1600x1600	4500x1800x1700
9	Total Weight	kg	1700	2250	2500	3000
10	Use condition		large size ≤30 Short Distance		Small size ≤20 Long Distance	Big size ≤50

Product Detailes
Packaging & Shipping
After Sales Service
1. We have done testing machine before shipping.
2. Support video operating indication, english manual, online technical support.
3. We promise 12 months warranty. Wearing parts not includes.
4. Necessary installation service if required. But you should pay the person flight cost and salary $100/day.
Company Profile
FAQ
1. How to choose the pumps?
R: According your demands working capacity, have small model 7m3/h, large models 15m3/h,25m3/h,35-40m3/h. Confirm your capacity!
R: according your pumping height and length demands.
R: according power - 2types, Diesel & Motor power, tell us what you prefer?
2. What the minimum order qty? the delivery time?
R: Qty 1PC at least.
R: 1pc pump machine within 7-10days, 2-5pcs pumps within 10-15days.
3. Why you choose us?
R: we use all Brand equipments, such as Huadong Diesel engine, Japan pump,brand motor and electrics, cylinder, heavy steel. Ensure
the pump with longer use life.
R: so do not compare only price, choose high quality choose us.
4. How long the Warranty? how you do the after-sales service?
R: we promise 12 months warranty.
R: support video operating indication, English manual,online technical support.
