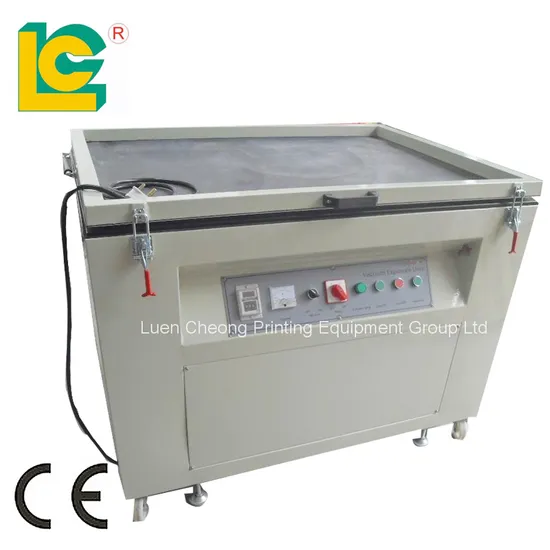

Big Screen Frame UV Exposure Machine TM-1500sb
Basic Info.
Model NO.
TM-1500SB
Page
Single Face
Automatic Grade
Semiautomatic
Product Type
UV Exposure Machine
Model Number
TM-1500sb
Glass Table Dimension
1210*1510mm
Max. Screen UV Exposure Size
1200*1500mm
Voltage
220V/50Hz
Lamp Wattage
2kw
Dimensions(W*L*H)
1250*1550*900mm
Weight
155kg
Transport Package
Plywood Case
Specification
CE, ISO-9001-2000
Trademark
LC
Origin
China
HS Code
8443198000
Production Capacity
60 Sets/Month
Packaging & Delivery
Package Size
125.00cm * 155.00cm * 90.00cm
Package Gross Weight
155.000kg
Product Description
Silk Screen Frame uv exposure unit printing machine| Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state Feature 1. Vacuum absorbing, the high quality elastic sealed rubber cloth, let the film tightly contact to the screen, and so ensures the clear designs; 2. Suitable for exposure the pad plate. 3. Famous Exposure system brand ensures the stable and even exposure. 4. Instance it comes into the vacuum condition, save much plat-making time. 5. Easy to operate, convenient to adjust the exposure time. 6. Choose high quality UV lamp which keep a long life span. 7. Whole jointing with zinco plate, both portability and firmly. 8. Exposal time auto adjustment and controlling. 9. High vacuum degree, easy to transfer and copy fine lines; 10. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp; 11. The upper panel adopts toughened glass, nice rigidity and high tansparence. |
| 1. Model number: | TM-1500SB |
| 2. Glass Table dimension: | 1210*1510mm |
| 3. Max. Screen stencil size: | 1200*1500mm |
| 4. Voltage: | 220V/50Hz |
| 5. Lamp wattage: | 2KW |
| 6. Dimensions(W*L*H): | 1250*1550*900mm |
| 7. Weight: | 155kg |
| Terms | CFR or FOB |
| Payment Terms | TT or L/C |
| Packing | Wooden case |
| Lead Time | 5 days after payment |
| SKU | 5 |
| Standards | Certificate CE |
