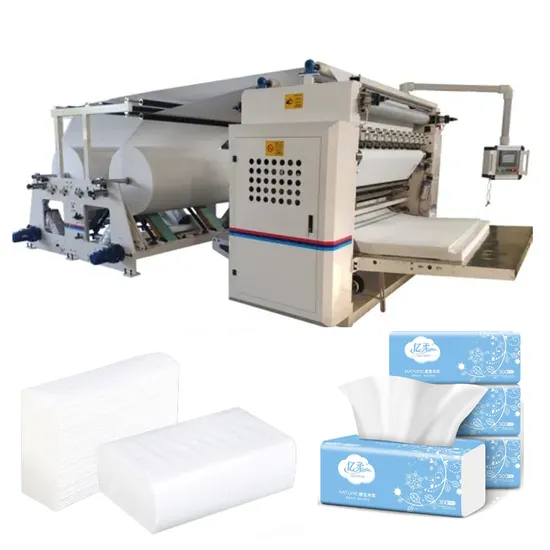

9 Lanes Pull out Face Paper Folding Machine

Product Description

Good Quality Automatic Facial Tissue Folding Machine
Technical Parameters for Facial Tissue Folding Machine
1. Complete size, with cutting length of 170mm,180mm,190mm,200mm,210mm,220mm; with width of 4 lanes, 5 lanes, 6 lanes, 7 lanes, 8 lanes, 9 lanes, 10 lanes, and others length can be ordered.
2. Fully automatic controls: frequency conversion speed regulation, real-time monitoring, change of parameters.
3. Longitudinal cutting knife, edge embossing device are air-bag type, separate front and rear independent pneumatic control, so that it's easier to adjust. Alloy cutting blade and bearing steel pinch roller are endurable.
4. It's maintenance free and gets the high-precision transmission because of the overall machine adopts synchronized belt and flat-belt transmission and cone pulley tension adjustment.
5.The machines are designed into wallboard and overall steel base plate with firm structure to ensure stability of high speed machine running.
6. Pneumatic constant-pressure unwinding belt, automatically get adaptable to base paper diameter.
7. Pneumatic left/right synchronized paper feeding mechanism greatly reduces labor intensity.

Model	4Lanes	5Lanes	6Lanes	7Lanes	8Lanes	9Lanes	10Lanes
Max. width of raw paper	840mm	1050mm	1260mm	1470mm	1680mm	1890mm	2100mm
Longitudinal cutting knife	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets
Vacuum system	15KW	15KW	22KW	22KW	22KW	22KW	30KW
Main unit power	4KW	5.5KW	5.5KW	7.5KW	7.5KW	7.5KW	11KW
Overall weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Overall size(L*W*H)	6000*2100 *1900mm	6000*2300 *1900mm	6000*2500 *1900mm	6000*2600 *1900mm	6000*3000 *1900mm	6000*3100 *1900mm	6000*3200 *1900mm
Folding speed	500-1000pcs/min/row
Max.diameter of raw paper	1200mm
Core inner diameter	76.2mm

Automatic Facial Tissue Production Line
Technical Parameters for Automatic Facial Tissue Production Line

FT Facial tissue making machine
Machine size(mm)	2T-10T	Air pressure(Mpa)	>0.5(user supplied)
Longitudinal cutting knife	2-10 front sets,2-10 rear sets	Voltage(Can be ordered)	380V 50Hz (3-phase)
Speed	500-1000pcs/min	Machine weight(kg)	About 3000-8500kg
power(kw)	3-11kw	Vacuum system	7.5-22KW

FC Log saw facial tissue cutting machine
Machine size(mm)	4600*1700*2500mm	Air pressure(Mpa)	0.5-0.8
Log length	500mm-5000mm	Voltage(can be ordered)	380V 50Hz
Speed	20-120cut/min	Machine weight(kg)	2500-2800
Power	13	Dia. of the blade	Φ610mm

RC300C Full Automatic Plastic Film Facial Tissue Paper Packing Machine
Machine size(mm)	3650L*6000*1850	Air pressue(Mpa)	0.5-0.6(user supplied)
Production size(mm)	(120-200)L*(90-150)W*(20-130)H	Voltage(can be order)	380V 50Hz(3-phase)
Speed(bags/min)	25-80	Machine weight(kg)	About 3000
Power(kw)	5.68	Packing material	CPP PE and so on

Main Features
1 Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
2 Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3 The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
4 With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.
5 With adopting static electricity removing device, the packing effect is more perfectible.
6 With the intelligent tem-controllor, the temperature adjustment is flexible.
7 It can be equipped with auto-perforating device, which is for various tear-off outside.
8 Automatically print production date and the location can be adjusted from up to down, from left to right.
