Free Customized Diesel Pto Small Mini Flat Die Electric Biomass Sawdust Pellet Mill for Making Wood, Straw Homemade Pellets Shjk

Product Description

BEST Easy Operate Electric Diesel PTO Small Sawdust Straw Flat Die Mini Pellet Mill for Making Wood,Biomass,Homemade Pellets

ABC Machinery is a leading manufacturer of wood pellet making machine, complete wood pellet plant and other related equipment for pelleting wood and agricultural waste. Over 10 years of experience in equipment manufacturing and project construction has proved our strong ability and great product quality.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

↘ Main Types of Equipment for Manufacturing Wood Pellets

Flat Die Pellet Mill: Includes die turned type and roller press turned type. Best choice for home use or farm use. Ring Die Pellet Mill:Includes verticle ring die type and horizontal ring die type.
Complete Wood Pellet Plant: Offer both small/straw pellet mill or movable/portable/mobile pellet plant (200kg/h~1000kg/h) and customzied full pellet line for industrial / commercial wood pellets production. The capacity of our wood pellet production equipment for sale ranging from 1ton to 40 tons per hour.

↘ Various Kinds of Mateirals Suitable for Making Pellets

Wooden Materials:log, tree branch, wood chips/bricks/blocks, wood shavings, sawdust, white/Korean pine wood, paulownia, poplar, white/red oak tree, pinus sylvestris, eucalyptus, beech, spruce, palm tree, palm fiber, palm empty fruit bunches (efb) etc; Agricultrial Wates: Sugarcane bagasse, rice husk, corn stalk, pineapple peel, rape straw, paddy straw, hemp straw, cotton rod, corn cob, peanut shells, groundnut hull, coffee husk, sunflower seed husk, oat husk, coconut shell, coir pitch, etc.
Energy Plant: Elephant grass, nipier grass, merker grass, pennisetum, bamboo
Others: bentonite, slime, leaves, charcoal powder, carbon black, peat, paper, cardboard, waste newspaper, olive pomace

↘ Main Application of Biomass Pellets: Biofuel, animal bedding or cat litter.
Pellet production is measured in kg per hour or ton per hour, and everyone's production needs will vary. So find a blend of size, running costs and production rates to suit your situation. Our biomass extruding equipment is capable to process hard wood and soft wood, which gives you the flexibility to choose the most economic raw material based on availability and price.

Motor-driven flat die pellet mill (Model B)

Model	Power(kw)	Output(kg/h)	Weight(kg)	Packing Size(mm)
ZLSP-D 150B	5.5	50-100	95/110	800*450*700
ZLSP-D 200B	7.5	80-120	200/230	1050*480*930
ZLSP-D 230B	11	120-200	290/320	1180*540*1000
ZLSP-D 260B	15	160-250	320/360	1240*540*950
ZLSP-D 300B	22	250-400	350/380	1300*560*1100

↘ Advantages of Pellet Mill

No.1 market share in China, more than 170 wood pellet production plant built in around the world. Convenient for your on-site investigation. More than 10 patents innovation technology guarantees the quality of every equipment of biomass pellet production line, eg. the smart cooling system, the 3 cylinder dryer, etc.
The capacity can reach up to 150,000T/Year.
One- stop service rang from project design to after service.
PLC intelligent control. Smart and reliable.
Facoty directly sale - wholesale price!
Professinal one-to-one technology support.
Stable spare parts supply.
Motor-driven Small Pellet Press (Model C)

Model	Power(kw)	Output(kg/h)	Weight(kg)	Packing Size(mm)
ZLSP-D 150C	5.5	60-110	105/125	1000*480*780
ZLSP-D 200C	7.5	80-120	210/230	1050*550*830
ZLSP-D 230C	11	120-200	290/320	1200*560*950
ZLSP-D 260C	15	160-250	340/370	1240*580*1000
ZLSP-D 300C	22	250-400	425/465	1300*620*1100

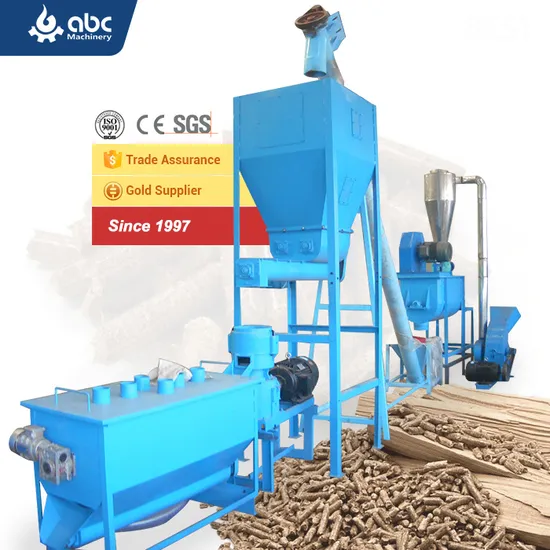

↘Complete Process of Wood Pellet Line

A fully complete wood pellet production line generally includes the following 5 sections: Crushing System: Dust collecting system is very important, we adopt the Bag dust collector in Hammer mill section, and the water film Dust collector in the whole of plant. (Main equipment: debarker, wood chipper, screening machine, hammer mill / crushing machine)

Drying System: A drum drier with fireproofing and moisture checking designing is adopted. The fuel can be various, but you can only choose one as the fuel.
Pelleting System: Adpoting aerodynamics technology and the current round principle, reduces the temperature in pelletizing chamber to around 90; As a result the machine can work well continuously; Timing feeder can control the feeding speed to reduce the block ratio; The body is more durable because we use spherical graphite cast iron; Capacity increased after adding another force feeder made from stainless steel to increase the feeding spread area.

Cooling System: Auto control cooling period. It makes the fresh pellets hard & dry. Cool air flows from bottom to top, while the pellets drop from top to bottom, they fully meet and cool completely; The manufacturing steel plates are 3mm thick; The cooling system consits of vessel, wind-in cone, discharge system, feed port, exhaust inlet, level control indicator; This equipment should be used with air lock feeder, cooling wind net.

Bagging System: Including automatic scale, conveyor, heat sealing devices for wood pellets; This machine is a combination of automatic weighting and filling, together with transportation sewing machine, so that it can automatically weigh, fill and sew; Computer high-speed smapling and processing, as well as the programmable control process ensure that it is universal to different packing; The special aseismic equipmetn can guarantee precise calculation, fast speed and stable work under bad conditions. It can be adjusted outside which is very convenient to maintain.

↘ Successful Projects of Complete Wood Pellet Line / Plant
Till now, ABC Machinery has exported to over 65 countries and regions all over the world,and can provide turnkey project design for customers, do overall onsite commissioning and offer aftersales service.
Pellets making has been proved to be one of the most promising and profitable business nowadays because of its considerable number of users. If you want to build your own pellet mill plant in small scale, our pellet production line (which includes wood crusher, dryer, wood pellet mill, wood pellet cooler, mini pellet mill, flat die pellet mill and pellet packer) is a wise choice for you. We export small and large pellet mill plant all over the world.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
